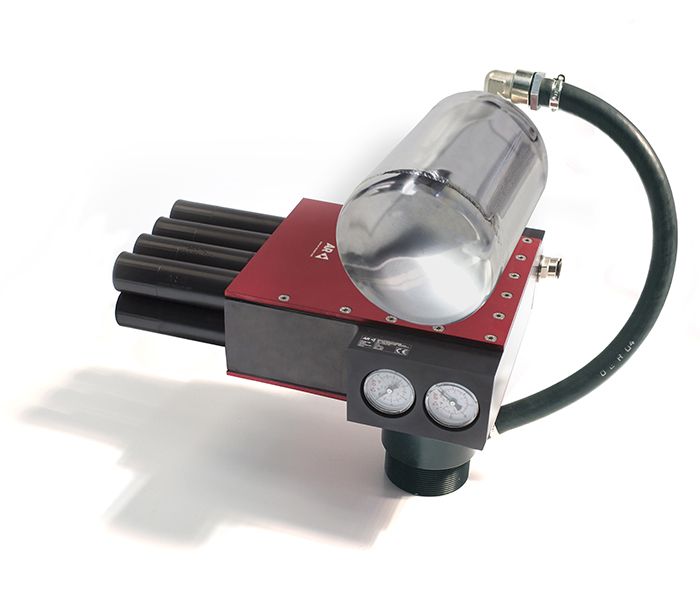

Multistage ejector vacuum unit K-50 high-flow with supply solenoid valve 24 V DC, fast ejector valve and VARADAP with G2” fitting for hoppers.
Multistage ejector vacuum unit K-50 high-flow with supply solenoid valve 24 V DC, fast ejector valve and VARADAP with G2” fitting for hoppers.
| Weight [g] | 8050 |
|---|---|
| Max vacuum degree [mbar] | -830 |
| Max suction air flow [Nl/min] | 4500 |
| Air flow consumption [Nl/min] | 1440 |
| Supply pressure [bar] | 4 ... 6 |
| Working noise level [dB] | 83 |
| Supply port | T14x12 |
| Vacuum port | G2" |
| Materials | Al | Latón | INOX | NBR | PEAD | PP |
| Working temperature [ºC] | -20 ... 70 |
| Solenoid power cons. [W] | 5,5 |
| Evacuation time [s] of a test volume to -100 Kpa | 0,1 |
| Evacuation time [s] of a test volume to -200 Kpa | 0,2 |
| Evacuation time [s] of a test volume to -300 Kpa | 0,4 |
| Evacuation time [s] of a test volume to -400 Kpa | 0,8 |
| Evacuation time [s] of a test volume to -500 Kpa | 1,3 |
| Evacuation time [s] of a test volume to -600 Kpa | 2,1 |
| Evacuation time [s] of a test volume to -700 Kpa | 3,5 |
| Evacuation time [s] of a test volume to -800 Kpa | 9 |
| Test volume [L] | 100 |
| Type | AQ |
| Supply solenoid valve voltage | 24 V AC |
| Quick exhaust | Free |
