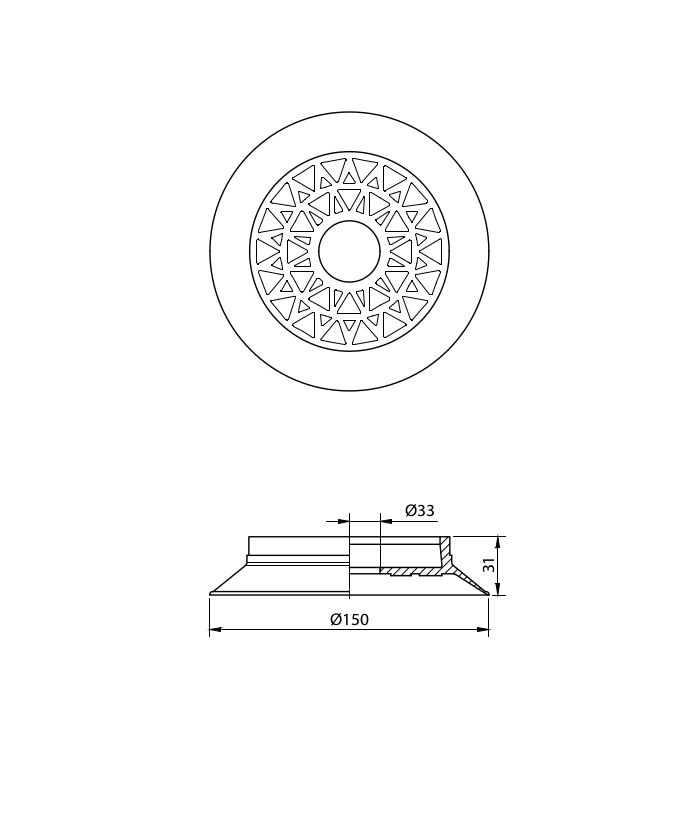

Rubber Spare part for vacuum cup VZ151PUR.
Rubber Spare part for vacuum cup VZ151PUR.
| Rubber Material | Polyurethane |
|---|---|
| Loaded size [mm] | 154 |
| Ø loaded [mm] | 158,5 |
| Minimum curve radius [mm] | 249 |
| Maximum stroke [mm] | 5 |
| Force at -0,4 bar [Kgf] | 65 |
| Force at -0,6 bar [Kgf] | 89 |
| Force at -0,8 bar [Kgf] | 109 |
| Force at -0,9 bar [Kgf] | 115 |
| Suitable for | Hard grip |
| Advantages | Antiskid contact cleads |
| Hardness | 65 SH |
Download product data sheet
