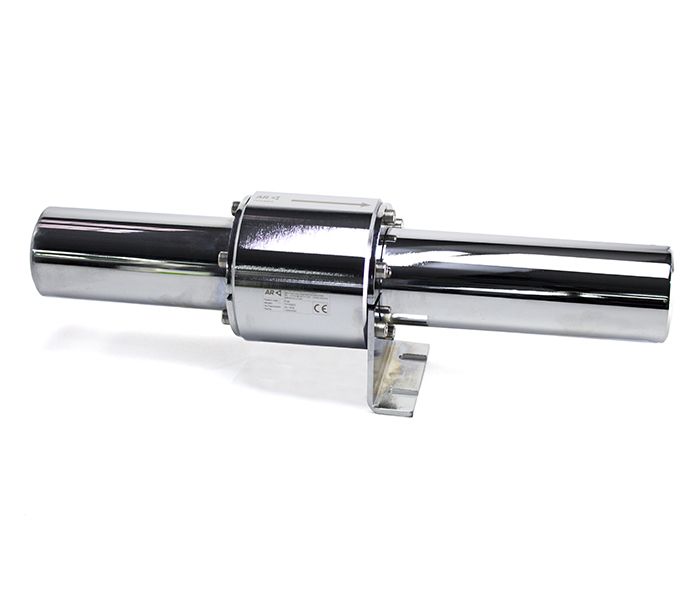

Suction tube conveyor of Ø 60; 12 standard holes
| Weight [g] | 5100 |
|---|---|
| Max vacuum degree [mbar] | -80 |
| Materials | Al, Iron, Bron. |
| Internal hole [mm] | Ø 50 |
| Suction air flow [NL/min] | 2600 |
| Consumption [NL/min] | 1100 |
| Supply pressure [bar] | 4-6 |
| Induced air flow [NL/min] | 3700 |
| Supply port | T14x12 |
| Operating temperature [ºC] | - 20...70 |
