| Rubber Material | Natural rubber |
|---|---|

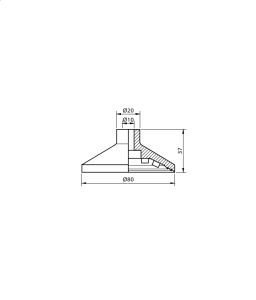

| Ø Unloaded [mm] | 80 |
| Ø loaded [mm] | 85 |
| Minimum curve radius [mm] | 50 |
| Maximum stroke [mm] | 10 |
| Volume [cm³] | 44 |
| Number of folds | 0 |
| Force at -0,4 bar [Kgf] | 15 |
| Force at -0,6 bar [Kgf] | 20.4 |
| Force at -0,8 bar [Kgf] | 25.7 |
| Force at -0,9 bar [Kgf] | 28.3 |
| Suitable for | Rough surfaces, Wear and abrasion durability |
| Advantages | Triple lip |
| Thread type | Male |
| Thread | G1/4’’ |
| Fitting part material | Aluminum |
Download datasheet (.pdf)
Download CAD3D file (.stp)
