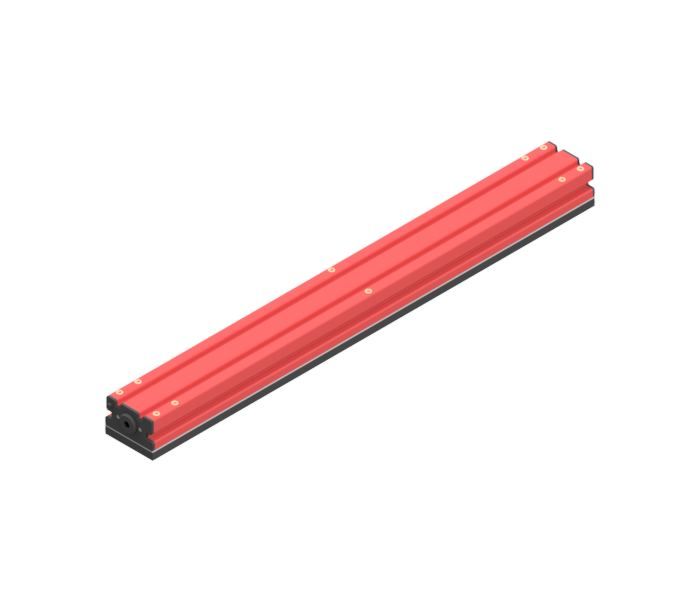

LVAC, length 1200 mm., foam thickness 20 mm., vacuum hole 10 , high density, suction Ø 18 mm.
| Weight [g] | 2409 |
|---|---|
| Length [mm] | 1200 |
| Foam thickness [mm] | 20 |
| Restrictor hole [mm] | 1,8 |
| Hole pattern | D3 |
| Suction [mm] | 18 |
| Hole number | 257 |
| Force at -0,4 bar [Kgf] | 261,6 |
| Force at -0,6 bar [Kgf] | 392,4 |
| Force at -0,8 bar [Kgf] | 523,2 |
| Force at -0,9 bar [Kgf] | 588,6 |
Download datasheet (.pdf)
Download CAD
