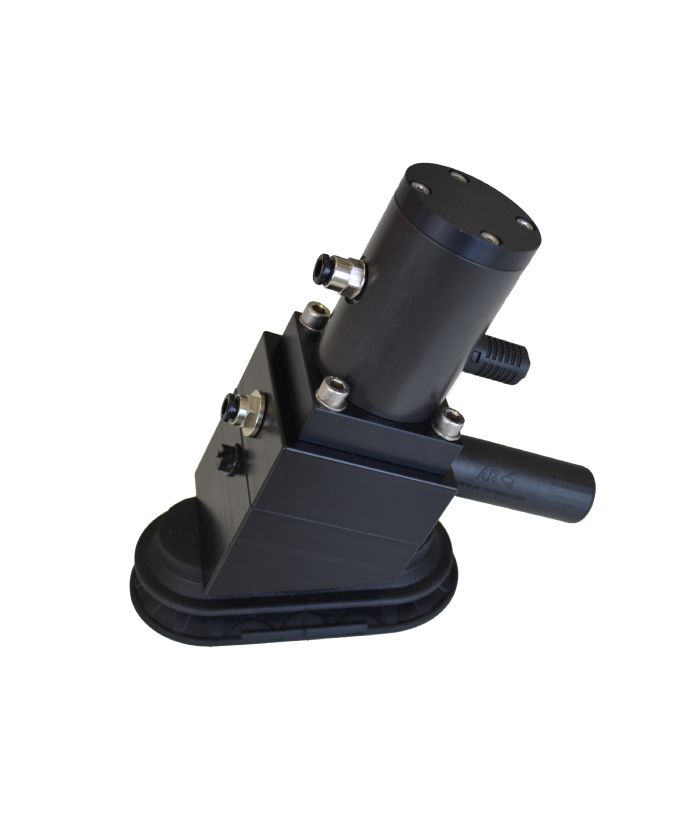

Vibrator holder with suction cup powered by vacuum ejector (vibrator not included).
Generator set + inclined suction cup for vacuum conveyors vibration (vibrator not included).
| Rubber Material | Nitrile |
|---|---|
| Unloaded size [mm] | 140x70 |
| Loaded size [mm] | 142x72 |
| Minimum curve radius [mm] | 70 |
| Maximum stroke [mm] | 16,5 |
| Volume [cm³] | 124 |
| Weight [g] | 1087 |
| Force at -0,4 bar [Kgf] | 22,1 |
| Force at -0,6 bar [Kgf] | 32,7 |
| Force at -0,8 bar [Kgf] | 42,0 |
| Force at -0,9 bar [Kgf] | 47,0 |
| Max vacuum degree [mbar] | -920 |
| Max suction air flow [Nl/min] | 60 |
| Air flow consumption [Nl/min] | 60 |
| Supply pressure [bar] | 4 ... 6 |
| Working noise level [dB] | 75 |
| Supply port | T6x4 |
| Materials | Al, brass, HDPE, PP |
| Working temperature [ºC] | 5 ... 60 |
