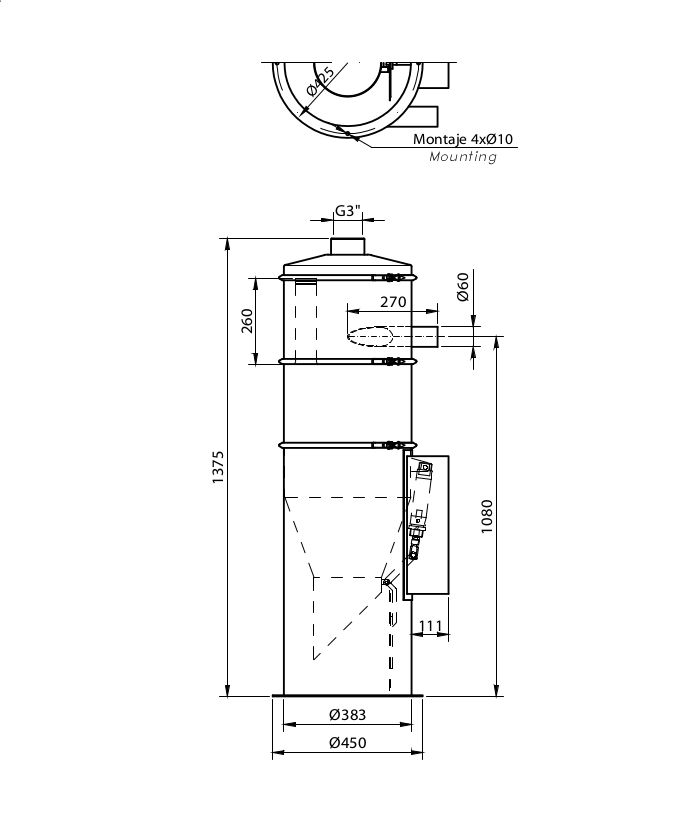

Modular vacuum conveyor of 66 L capacity, standard support skirt, and tangent product inlet and Ø60 mm straight vacuum inlet
Modular vacuum conveyor of 66 L capacity, standard support skirt, and tangent product inlet and Ø60 mm straight vacuum inlet
| Weight [g] | 40200 |
|---|---|
| Internal volume [L] | 66 |
| Convey pipeline Ø [mm] | 60 |
| Cylinder operation pressure [bar] | 2 – 10 |
| Modules material | AISIS 316L |
| Rubber seals material | silicone|EPDM |
| Surface finish | Internal and external mirror polished R=0,8 um |
| Product inlet | Tangential 60 |
| Vacuum inlet | Straight G 3" thread |
| Unload | Unload lid DN150 |
| Working temperature [ºC] | -20 ... 70 |
Download datasheet
Download CAD
