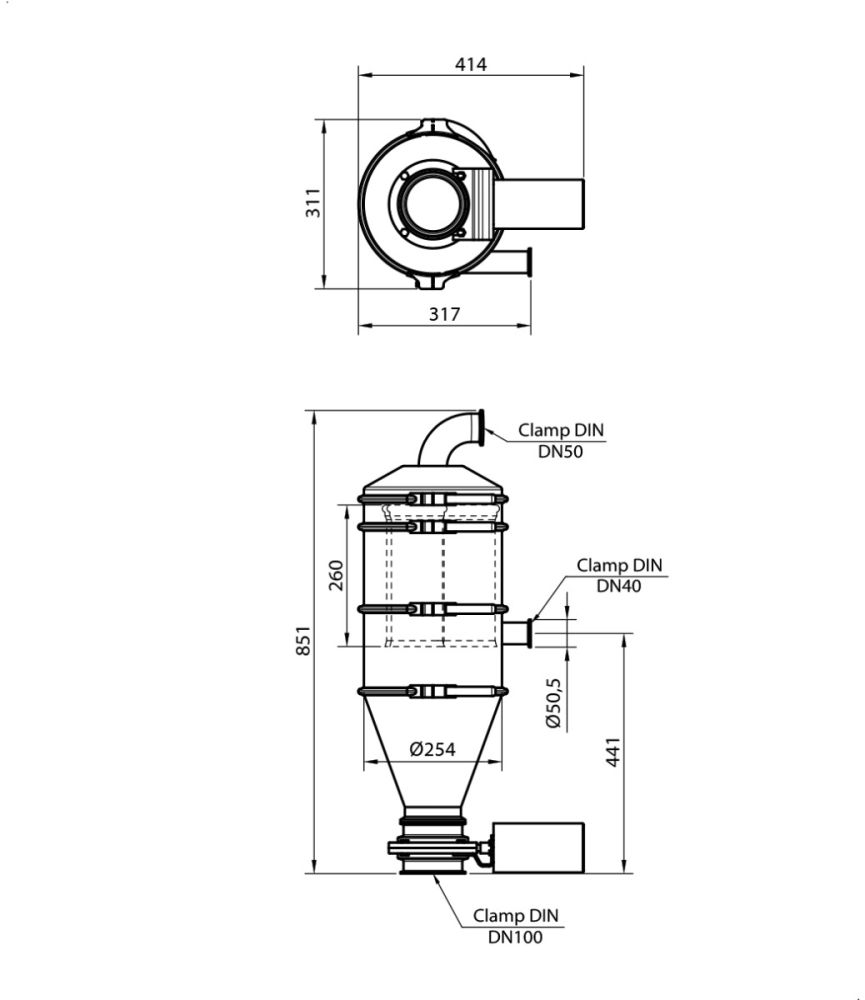

Modular vacuum conveyor of 8L capacity, elbow vacuum inlet with Clamp DN50, tangent product inlet DN40, snapring filters
| Weight [g] | 16300 |
|---|---|
| Internal volume [L] | 8 |
| Convey pipeline Ø [mm] | 40 |
| Cylinder operation pressure [bar] | 2 – 10 |
| Modules material | AISIS 316L |
| Rubber seals material | silicone|EPDM |
| Surface finish | Internal and external mirror polished R=0,8 um |
| Product inlet | Tangential Clamp DIN DN40 |
| Vacuum inlet | Elbow clamp DIN DN50 |
| Unload | Butterfly valve DIN DN100 |
| Working temperature [ºC] | -20 ... 70 |
Download datasheet (.pdf)
Download CAD
