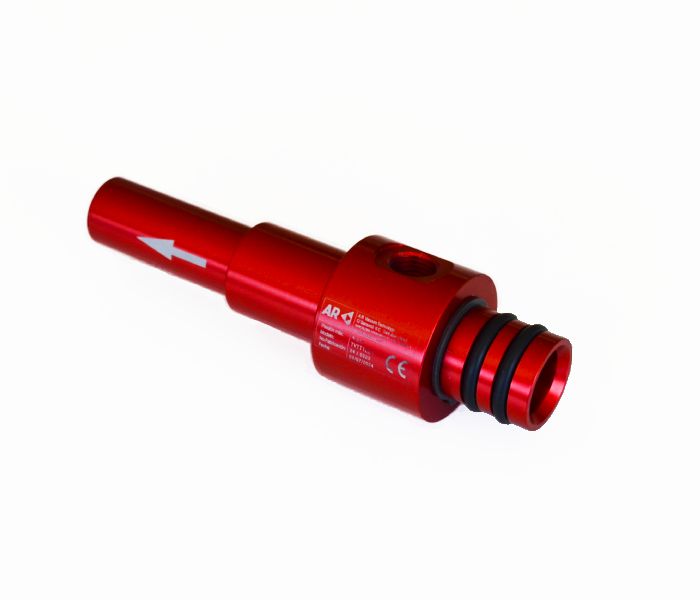

Suction tube conveyor of Ø 12 mm; standard, in anodized aluminum.
Suction tube conveyor of Ø 12 mm; standard, in anodized aluminum.
| Weight [g] | 161 |
|---|---|
| Max vacuum degree [mbar] | -400 |
| Materials | Al |
| Internal hole [mm] | Ø 12 |
| Suction air flow [NL/min] | 880 |
| Consumption [NL/min] | 780 |
| Supply pressure [bar] | 2-6 |
| Induced air flow [NL/min] | 1160 |
| Operating temperature [ºC] | - 20...70 |
Download datasheet (.pdf)
Download CAD
