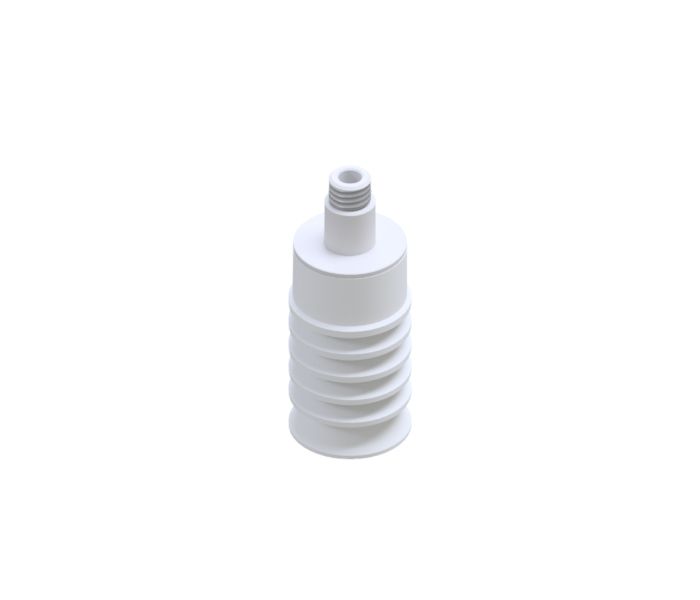

Long Stroke Vacuum Cup, 38 mm diameter, rubber material Silicone. + Aluminium metallic art for vacuum cups VF38/5,45/5,60/5,75/5 and 45, thread 1/4 male.
Long Stroke Vacuum Cup, 38 mm diameter, rubber material Silicone. + Aluminium metallic art for vacuum cups VF38/5,45/5,60/5,75/5 and 45, thread 1/4 male.
| Rubber Material | Silicone |
|---|---|
| Ø Unloaded [mm] | 38 |
| Ø loaded [mm] | 42 |
| Minimum curve radius [mm] | 17.5 |
| Maximum stroke [mm] | 35 |
| Volume [cm³] | 41 |
| Number of folds | 4 |
| Force at -0,4 bar [Kgf] | 2.38 |
| Force at -0,6 bar [Kgf] | 3.17 |
| Force at -0,8 bar [Kgf] | 3.83 |
| Force at -0,9 bar [Kgf] | 4.9 |
| Suitable for | Flat surfaces, Spherical surfaces, Curved surfaces, Horizontal handling, Food |
| Advantages | Lifting stroke, Great adaptability |
| Thread type | Male |
| Thread | G1/4’’ |
| Fitting part material | Aluminum |
Download datasheet (.pdf)
Download CAD
