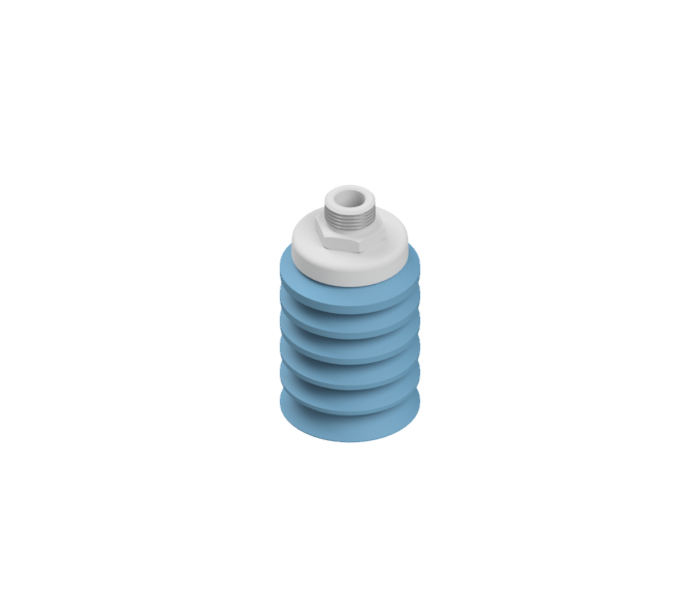

Long Stroke Vacuum Cup, 45 mm diameter, natural rubber material. + Metallic part composed by 3 pieces for vacuum cups VF38/5,45/5,60/5, 75/5 and 45, thread 3/8 male.
Long Stroke Vacuum Cup, 45 mm diameter, natural rubber material. + Metallic part composed by 3 pieces for vacuum cups VF38/5,45/5,60/5, 75/5 and 45, thread 3/8 male.
| Rubber Material | Natural rubber |
|---|---|
| Ø Unloaded [mm] | 45 |
| Ø loaded [mm] | 47.5 |
| Minimum curve radius [mm] | 17.5 |
| Maximum stroke [mm] | 35 |
| Volume [cm³] | 62 |
| Number of folds | 5 |
| Force at -0,4 bar [Kgf] | 2.75 |
| Force at -0,6 bar [Kgf] | 3.5 |
| Force at -0,8 bar [Kgf] | 4.65 |
| Force at -0,9 bar [Kgf] | 5.02 |
| Suitable for | Flat surfaces, Spherical surfaces, Curved surfaces, Horizontal handling, Food |
| Advantages | Lifting stroke, Great adaptability |
| Thread type | Male |
| Thread | G3/8’’ |
| Fitting part material | Aluminum |
