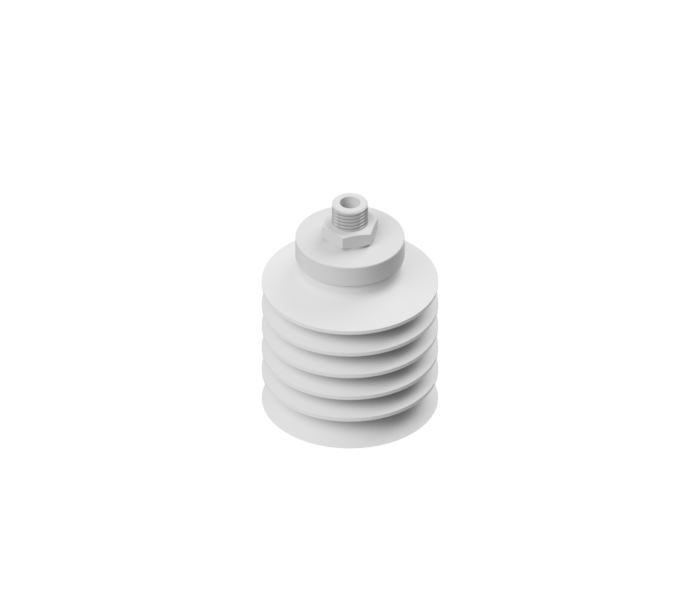

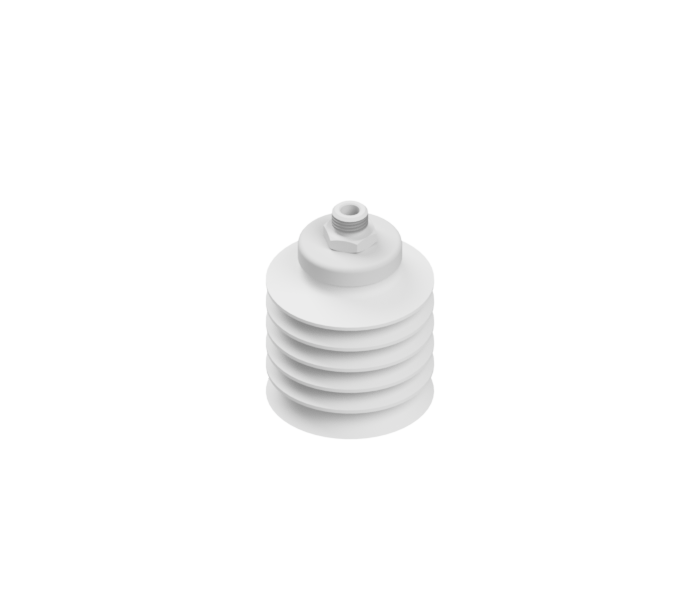

Long Stroke Vacuum Cup, 60 mm diameter, rubber material Silicone. + Metallic part composed by 3 pieces for vacuum cups VF38/5,45/5,60/5, 75/5 and 45, thread 1/4 male.
Long Stroke Vacuum Cup, 60 mm diameter, rubber material Silicone. + Metallic part composed by 3 pieces for vacuum cups VF38/5,45/5,60/5, 75/5 and 45, thread 1/4 male.
| Rubber Material | Silicone |
|---|---|
| Ø Unloaded [mm] | 60 |
| Ø loaded [mm] | 60.5 |
| Minimum curve radius [mm] | 20 |
| Maximum stroke [mm] | 28 |
| Volume [cm³] | 85 |
| Number of folds | 5 |
| Force at -0,4 bar [Kgf] | 6.06 |
| Force at -0,6 bar [Kgf] | 6.81 |
| Force at -0,8 bar [Kgf] | 6.85 |
| Force at -0,9 bar [Kgf] | 7.73 |
| Suitable for | Flat surfaces, Spherical surfaces, Curved surfaces, Horizontal handling, Food |
| Advantages | Lifting stroke, Great adaptability |
| Thread type | Male |
| Thread | G1/4’’ |
| Fitting part material | Aluminum |
