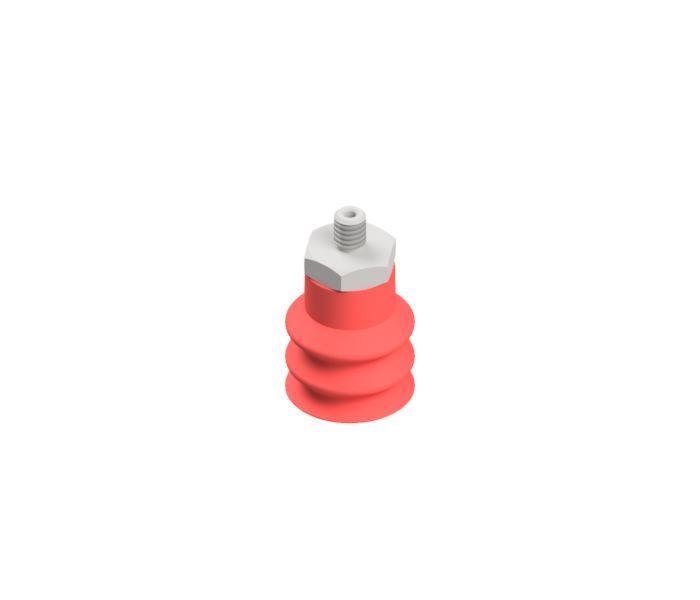

Bellows Vacuum Cup, 20 mm diameter, rubber material red silicone 30º shore + Metallic Part thread M5 male, for vacuum cups VF20,VF30 and V026.
Bellows Vacuum Cup, 20 mm diameter, rubber material red silicone 30º shore + Metallic Part thread M5 male, for vacuum cups VF20,VF30 and V026.
| Rubber Material | Silicone |
|---|---|
| Ø loaded [mm] | 20 |
| Minimum curve radius [mm] | 7.5 |
| Maximum stroke [mm] | 7 |
| Volume [cm³] | 3 |
| Number of folds | 2,5 |
| Force at -0,4 bar [Kgf] | 0.96 |
| Force at -0,6 bar [Kgf] | 1.32 |
| Force at -0,8 bar [Kgf] | 1.52 |
| Force at -0,9 bar [Kgf] | 1.62 |
| Suitable for | Flat surfaces, Curved surfaces, Boxes |
| Advantages | Wide range of diameters, Versatility, Height compensation, Wear and abrasion durability |
| Thread type | Male |
| Thread | M5 |
| Fitting part material | Steel |
Download datasheet
Download CAD
