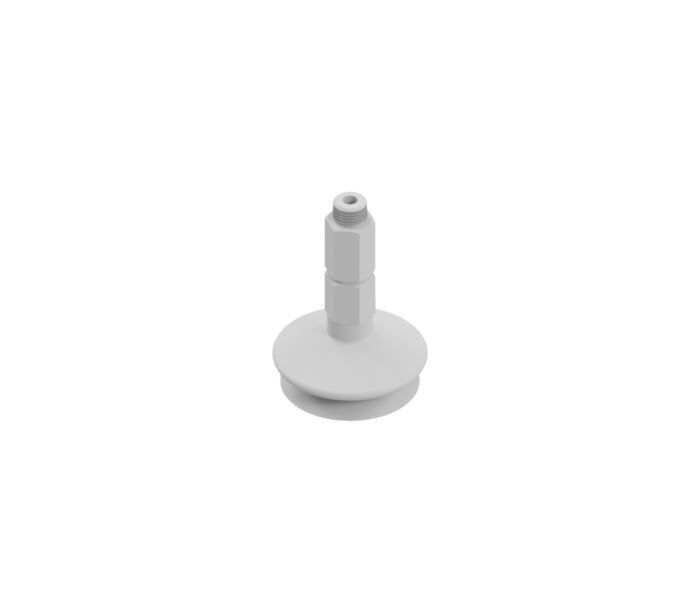

Bellows vacuum cup 53 mm diameter, rubber material nitrile for high temperatures. + Metallic part with valve for vacuum cup VF53.
Bellows vacuum cup 53 mm diameter, rubber material nitrile for high temperatures. + Metallic part with valve for vacuum cup VF53.
| Rubber Material | High temperature nitrile |
|---|---|
| Ø Unloaded [mm] | 53 |
| Ø loaded [mm] | 53.7 |
| Minimum curve radius [mm] | 22.5 |
| Maximum stroke [mm] | 16 |
| Volume [cm³] | 31 |
| Number of folds | 2 |
| Force at -0,4 bar [Kgf] | 5.03 |
| Force at -0,6 bar [Kgf] | 6.47 |
| Force at -0,8 bar [Kgf] | 8.08 |
| Force at -0,9 bar [Kgf] | 8.87 |
| Suitable for | Flat surfaces, Curved surfaces |
| Advantages | Wide range of diameters, Versatility, Height compensation |
| Thread type | Male |
| Thread | G1/4’’ |
| Fitting part material | Aluminum |
