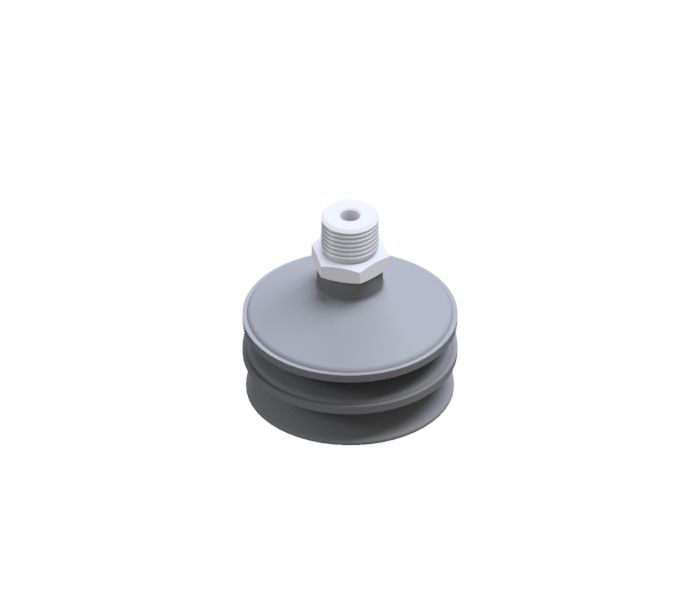

Bellows Vacuum Cup, 62 mm diameter, rubber material Nitrile. + Metallic part 3/8" male, for vacuum cup VC50,60,VF53,56,V48,52 and VSP.
Bellows Vacuum Cup, 62 mm diameter, rubber material Nitrile. + Metallic part 3/8" male, for vacuum cup VC50,60,VF53,56,V48,52 and VSP.
| Rubber Material | Nitrile |
|---|---|
| Ø Unloaded [mm] | 60 |
| Ø loaded [mm] | 62 |
| Minimum curve radius [mm] | 22..5 |
| Maximum stroke [mm] | 20 |
| Volume [cm³] | 50.6 |
| Number of folds | 2 |
| Force at -0,4 bar [Kgf] | 9.16 |
| Force at -0,6 bar [Kgf] | 11.9 |
| Force at -0,8 bar [Kgf] | 14.7 |
| Force at -0,9 bar [Kgf] | 15.7 |
| Suitable for | Flat surfaces, Curved surfaces |
| Advantages | Wide range of diameters, Versatility, Height compensation |
| Thread type | Male |
| Thread | G3/8’’ |
| Fitting part material | Steel |
Download datasheet (.pdf)
Download CAD3D file (.stp)
