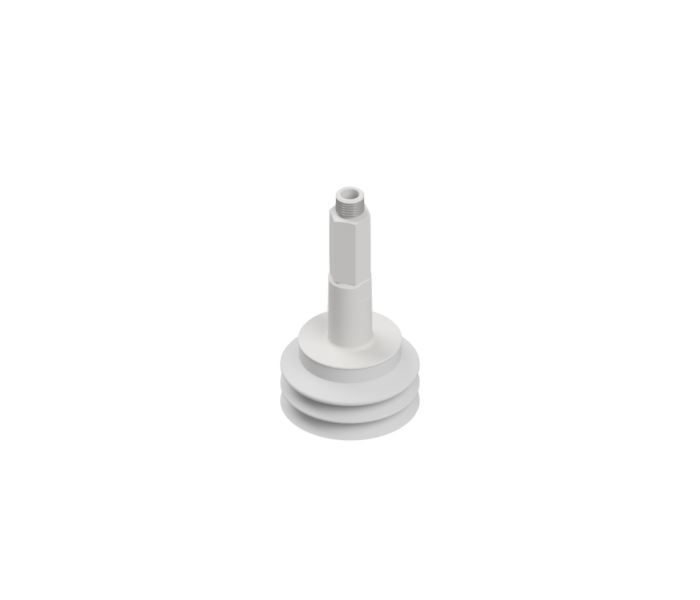

Bellows vacuum cup 63 mm diameter, rubber material nitrile for high temperatures. + Metallic part with valve for vacuum cup with ref: VF63, VF55
Bellows vacuum cup 63 mm diameter, rubber material nitrile for high temperatures. + Metallic part with valve for vacuum cup with ref: VF63, VF55
| Rubber Material | High temperature nitrile |
|---|---|
| Ø Unloaded [mm] | 63 |
| Ø loaded [mm] | 66 |
| Minimum curve radius [mm] | 27.5 |
| Maximum stroke [mm] | 10 |
| Volume [cm³] | 55 |
| Number of folds | 2,5 |
| Force at -0,4 bar [Kgf] | 7.36 |
| Force at -0,6 bar [Kgf] | 10.2 |
| Force at -0,8 bar [Kgf] | 12.7 |
| Force at -0,9 bar [Kgf] | 13.9 |
| Suitable for | Flat surfaces, Curved surfaces |
| Advantages | Wide range of diameters, Versatility, Height compensation |
| Thread type | Male |
| Thread | G1/4’’ |
| Fitting part material | Aluminum |
