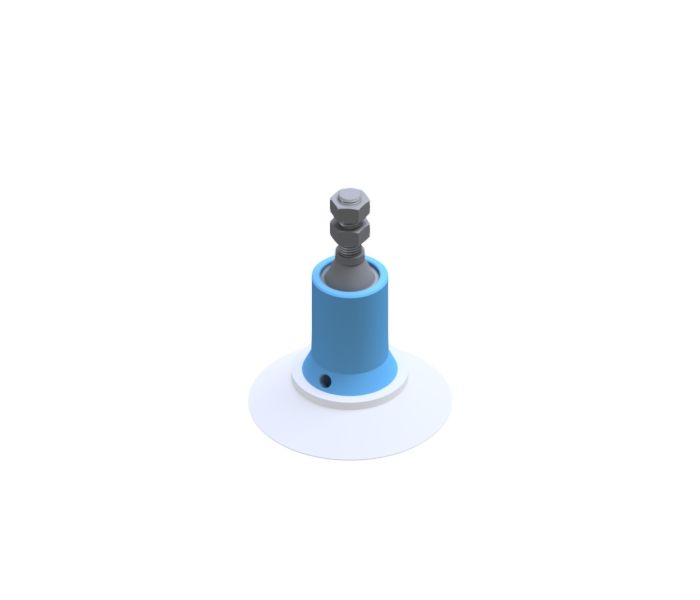

Complete vacuum cup, diameter 170 mm, double lip and antiskid, with ball joint and sensing valve, rubber material white silicone.
Complete vacuum cup, diameter 170 mm, double lip and antiskid, with ball joint and sensing valve, rubber material white silicone.
| Rubber Material | Silicone |
|---|---|
| Ø Unloaded [mm] | 172 |
| Ø loaded [mm] | 176 |
| Minimum curve radius [mm] | 400 |
| Maximum stroke [mm] | 9 |
| Volume [cm³] | 198 |
| Weight [g] | 1735 |
| Force at -0,4 bar [Kgf] | 81 |
| Force at -0,6 bar [Kgf] | 107 |
| Force at -0,8 bar [Kgf] | 131 |
| Force at -0,9 bar [Kgf] | 145 |
| Suitable for | Slightly curved surfaces, Smooth surfaces, Vertical handling, High load, High precision grip |
| Advantages | Double lip, Antiskid contact cleads |
| Thread | 1 |
| Thread type | 1 |
| Valve | G1/4’’ |
| Spring Leveler | HEMBRA |
Download datasheet (.pdf)
Download CAD3D file (.stp)
