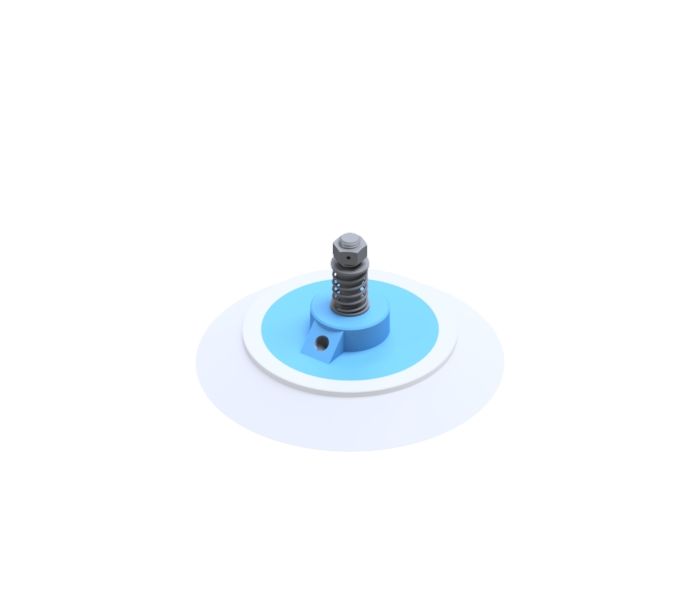

Complete vacuum cup, diameter 350-260 mm, double lip and antiskid, with spring leveler of 30 mm stroke, rubber material white silicone.
Complete vacuum cup, diameter 350-260 mm, double lip and antiskid, with spring leveler of 30 mm stroke, rubber material white silicone.
| Rubber Material | Silicone |
|---|---|
| Ø Unloaded [mm] | 354 |
| Ø loaded [mm] | 360 |
| Minimum curve radius [mm] | 1224 |
| Maximum stroke [mm] | 12,5 |
| Volume [cm³] | 1400 |
| Weight [g] | 4265 |
| Force at -0,4 bar [Kgf] | 390 |
| Force at -0,6 bar [Kgf] | 585 |
| Force at -0,8 bar [Kgf] | 780 |
| Force at -0,9 bar [Kgf] | 877 |
| Suitable for | Slightly curved surfaces, Smooth surfaces, Vertical handling, High load, High precision grip |
| Advantages | Double lip, Antiskid contact cleads |
| Ball joint | 30 |
| Valve | G1/2’’ |
| Spring Leveler | HEMBRA |
Download datasheet (.pdf)
Download CAD3D file (.stp)
