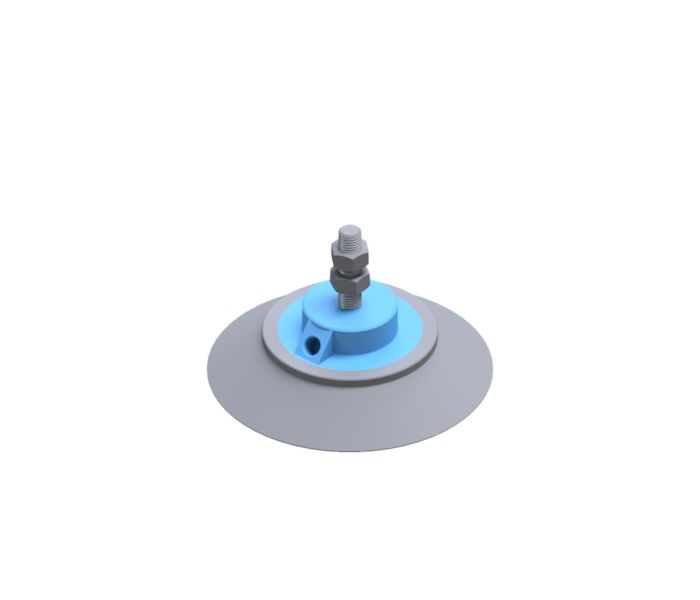

Complete vacuum cup diameter 240-185 mm, double lip and antiskid, with sensing valve, rubber material Nitrile.
Complete vacuum cup diameter 240-185 mm, double lip and antiskid, with sensing valve, rubber material Nitrile.
| Rubber Material | Nitrile |
|---|---|
| Ø Unloaded [mm] | 242 |
| Ø loaded [mm] | 248 |
| Minimum curve radius [mm] | 747 |
| Maximum stroke [mm] | 9 |
| Volume [cm³] | 480 |
| Weight [g] | 2000 |
| Force at -0,4 bar [Kgf] | 145 |
| Force at -0,6 bar [Kgf] | 205 |
| Force at -0,8 bar [Kgf] | 255 |
| Force at -0,9 bar [Kgf] | 280 |
| Suitable for | Slightly curved surfaces, Smooth surfaces, Vertical handling, High load, High precision grip |
| Advantages | Double lip, Antiskid contact cleads |
| Thread type | 1 |
| Valve | G3/8’’ |
| Spring Leveler | HEMBRA |
