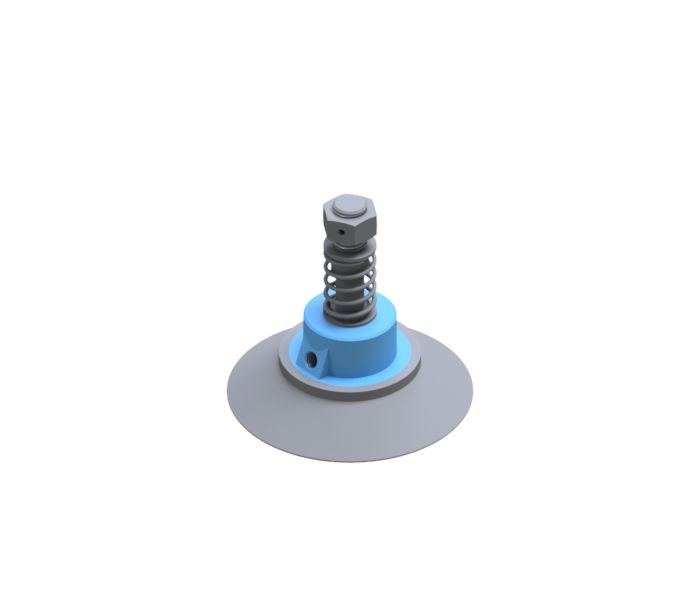

Complete vacuum cup diameter 170-130 mm, double lip and antiskid, with sensing valve and spring leveler of 30 mm stroke, rubber material Nitrile.
Complete vacuum cup diameter 170-130 mm, double lip and antiskid, with sensing valve and spring leveler of 30 mm stroke, rubber material Nitrile.
| Rubber Material | Nitrile |
|---|---|
| Ø Unloaded [mm] | 172 |
| Ø loaded [mm] | 176 |
| Minimum curve radius [mm] | 400 |
| Maximum stroke [mm] | 9 |
| Volume [cm³] | 198 |
| Weight [g] | 1305 |
| Force at -0,4 bar [Kgf] | 81 |
| Force at -0,6 bar [Kgf] | 107 |
| Force at -0,8 bar [Kgf] | 131 |
| Force at -0,9 bar [Kgf] | 145 |
| Suitable for | Slightly curved surfaces, Smooth surfaces, Vertical handling, High load, High precision grip |
| Advantages | Double lip, Antiskid contact cleads |
| Thread type | 1 |
| Ball joint | 30 |
| Valve | G1/4’’ |
| Spring Leveler | HEMBRA |
Download datasheet (.pdf)
Download CAD3D file (.stp)
