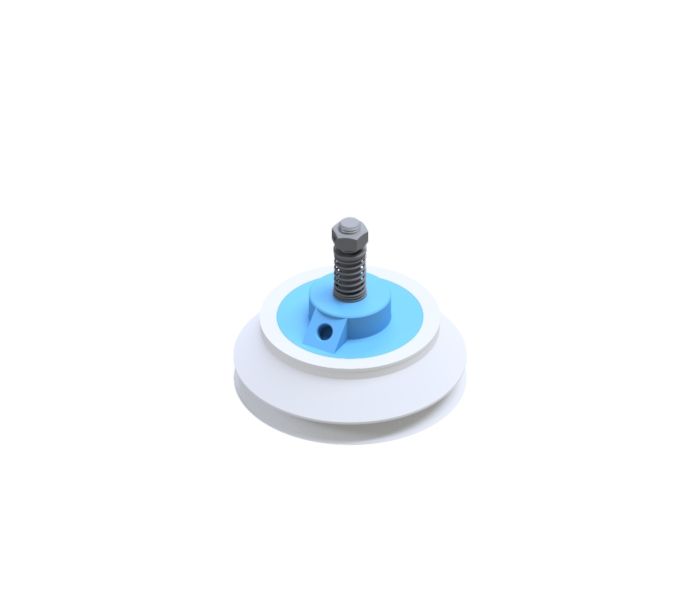

Whole vacuum cup diameter 255 mm, with spring leveler of 30 mm stroke, rubber material white silicone
Whole vacuum cup diameter 255 mm, with spring leveler of 30 mm stroke, rubber material white silicone
| Rubber Material | Silicone |
|---|---|
| Ø Unloaded [mm] | 255 |
| Ø loaded [mm] | 255 |
| Minimum curve radius [mm] | 250 |
| Maximum stroke [mm] | 40 |
| Volume [cm³] | 1920 |
| Weight [g] | 3047 |
| Number of folds | 1,5 |
| Force at -0,4 bar [Kgf] | 150 |
| Force at -0,6 bar [Kgf] | 205 |
| Force at -0,8 bar [Kgf] | 251 |
| Force at -0,9 bar [Kgf] | 285 |
| Suitable for | Horizontal handling, Vertical handling, Hard grip, High load |
| Advantages | Height compensation, Large internal volume, Antiskid contact cleads |
| Thread | G1/2’’ |
| Thread type | Hembra |
| Spring Leveler | 30 |
