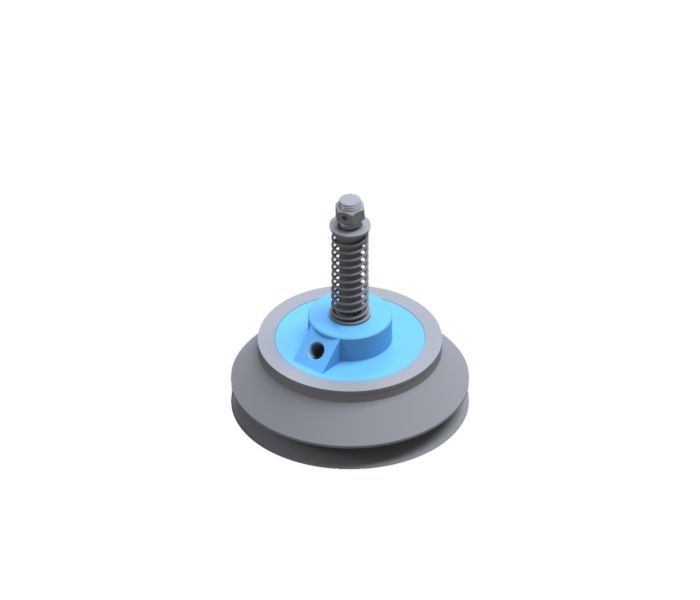

Whole vacuum cup diameter 255 mm, with spring leveler of 60 mm stroke, rubber material nitrile.
Whole vacuum cup diameter 255 mm, with spring leveler of 60 mm stroke, rubber material nitrile.
| Rubber Material | Nitrile |
|---|---|
| Ø Unloaded [mm] | 255 |
| Ø loaded [mm] | 255 |
| Minimum curve radius [mm] | 250 |
| Maximum stroke [mm] | 40 |
| Volume [cm³] | 1920 |
| Weight [g] | 3350 |
| Number of folds | 1,5 |
| Force at -0,4 bar [Kgf] | 150 |
| Force at -0,6 bar [Kgf] | 205 |
| Force at -0,8 bar [Kgf] | 251 |
| Force at -0,9 bar [Kgf] | 285 |
| Suitable for | Horizontal handling, Vertical handling, Hard grip, High load |
| Advantages | Height compensation, Large internal volume, Antiskid contact cleads |
| Valve | G1/2’’ |
| Spring Leveler | HEMBRA |
Download datasheet (.pdf)
Download CAD3D file (.stp)
