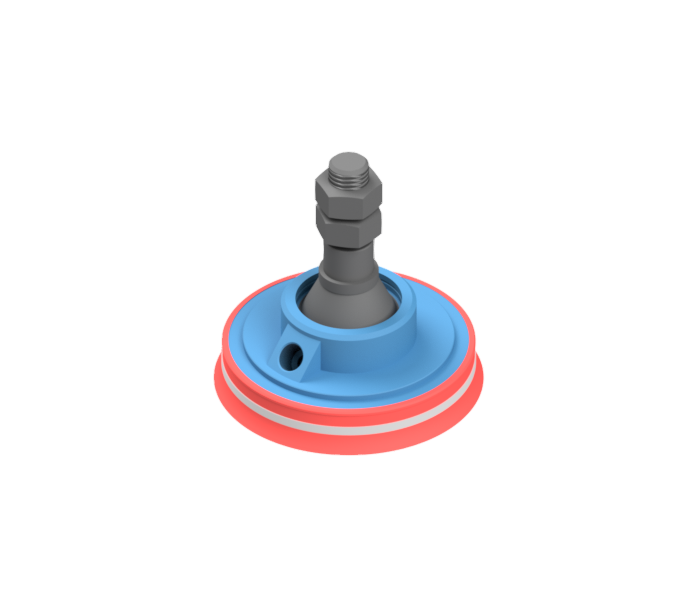

Complete triple lip suction cup for heavy loads, Ø150 mm, red silicone, metallic part with ball joint, thread M24 male, vacuum port G3/8" female
Complete triple lip suction cup for heavy loads, Ø150 mm, red silicone, metallic part with ball joint, thread M24 male, vacuum port G3/8" female
| Rubber Material | Silicone |
|---|---|
| Ø Unloaded [mm] | 160 |
| Ø loaded [mm] | 167 |
| Minimum curve radius [mm] | 1055 |
| Maximum stroke [mm] | 3 |
| Volume [cm³] | 219 |
| Weight [g] | 1850 |
| Force at -0,4 bar [Kgf] | 64 |
| Force at -0,6 bar [Kgf] | 92 |
| Force at -0,8 bar [Kgf] | 123 |
| Force at -0,9 bar [Kgf] | 142 |
| Suitable for | Rough surfaces, Horizontal handling, Vertical handling, High load, High precision grip |
| Advantages | Triple lip |
| Thread | G3/8’’ |
| Thread type | Female |
| Ball joint | Yes |
