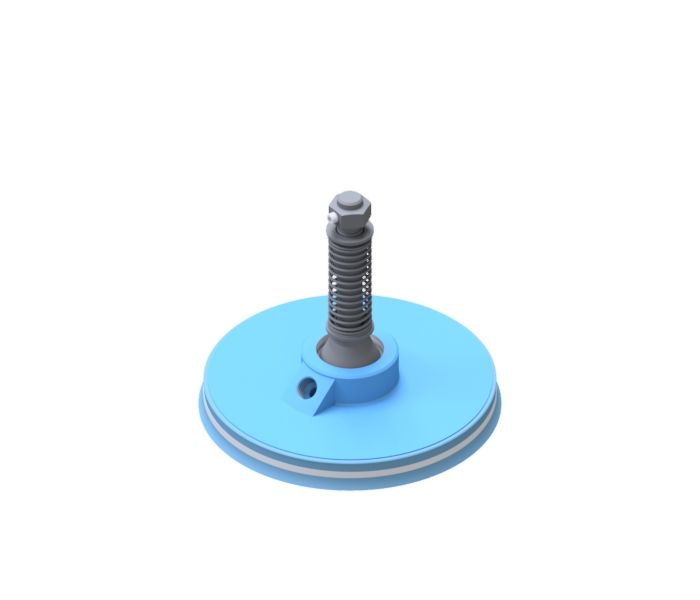

Complete vacuum cup diameter 270 mm, triple lip, with ball joint and spring leveler of 60 mm stroke, rubber material Natural Rubber.
Complete vacuum cup diameter 270 mm, triple lip, with ball joint and spring leveler of 60 mm stroke, rubber material Natural Rubber.
| Rubber Material | Natural rubber |
|---|---|
| Ø Unloaded [mm] | 280 |
| Ø loaded [mm] | 289 |
| Minimum curve radius [mm] | 2435 |
| Maximum stroke [mm] | 4 |
| Volume [cm³] | 667 |
| Weight [g] | 4110 |
| Force at -0,4 bar [Kgf] | 239 |
| Force at -0,6 bar [Kgf] | 345 |
| Force at -0,8 bar [Kgf] | 446 |
| Force at -0,9 bar [Kgf] | 505 |
| Suitable for | Rough surfaces, Horizontal handling, Vertical handling, High load, High precision grip |
| Advantages | Triple lip |
| Thread | G1/2’’ |
| Thread type | Female |
| Ball joint | Yes |
| Spring Leveler | 60 |
