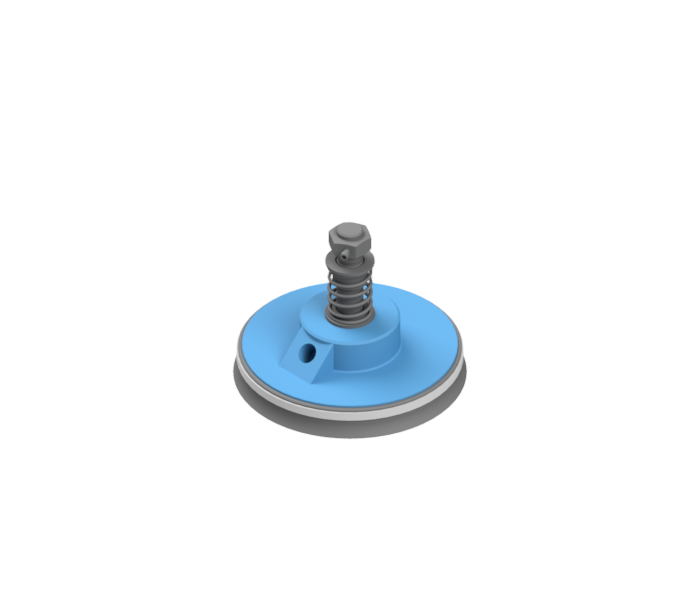

Complete vacuum cup diameter 200 mm, triple lip, with spring leveler of 30 mm stroke, rubber material EPDM.
Complete vacuum cup diameter 200 mm, triple lip, with spring leveler of 30 mm stroke, rubber material EPDM.
| Rubber Material | EPDM |
|---|---|
| Ø Unloaded [mm] | 209 |
| Ø loaded [mm] | 215 |
| Minimum curve radius [mm] | 1368 |
| Maximum stroke [mm] | 4 |
| Volume [cm³] | 378 |
| Weight [g] | 2591 |
| Force at -0,4 bar [Kgf] | 120 |
| Force at -0,6 bar [Kgf] | 174 |
| Force at -0,8 bar [Kgf] | 225 |
| Force at -0,9 bar [Kgf] | 255 |
| Suitable for | Rough surfaces, Horizontal handling, Vertical handling, High load, High precision grip |
| Advantages | Triple lip |
| Thread | G1/2’’ |
| Thread type | Female |
| Spring Leveler | 30 |
