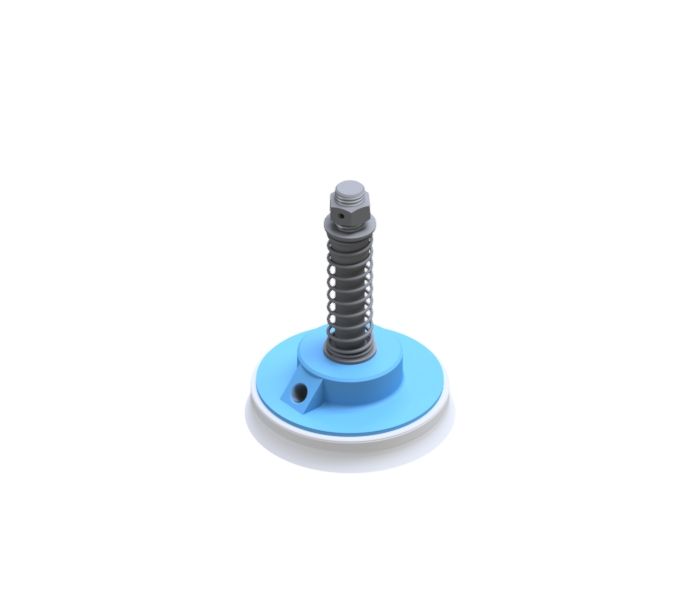

Complete vacuum cup diameter 150 mm, triple lip, with spring leveler of 60 mm stroke, rubber material White silicone.
Complete vacuum cup diameter 150 mm, triple lip, with spring leveler of 60 mm stroke, rubber material White silicone.
| Rubber Material | Silicone |
|---|---|
| Ø Unloaded [mm] | 160 |
| Ø loaded [mm] | 167 |
| Minimum curve radius [mm] | 1055 |
| Maximum stroke [mm] | 3 |
| Volume [cm³] | 219 |
| Weight [g] | 2020 |
| Force at -0,4 bar [Kgf] | 64 |
| Force at -0,6 bar [Kgf] | 92 |
| Force at -0,8 bar [Kgf] | 123 |
| Force at -0,9 bar [Kgf] | 142 |
| Suitable for | Rough surfaces, Horizontal handling, Vertical handling, High load, High precision grip |
| Advantages | Triple lip |
| Thread | G3/8’’ |
| Thread type | Female |
| Spring Leveler | 60 |
Download datasheet (.pdf)
Download CAD
