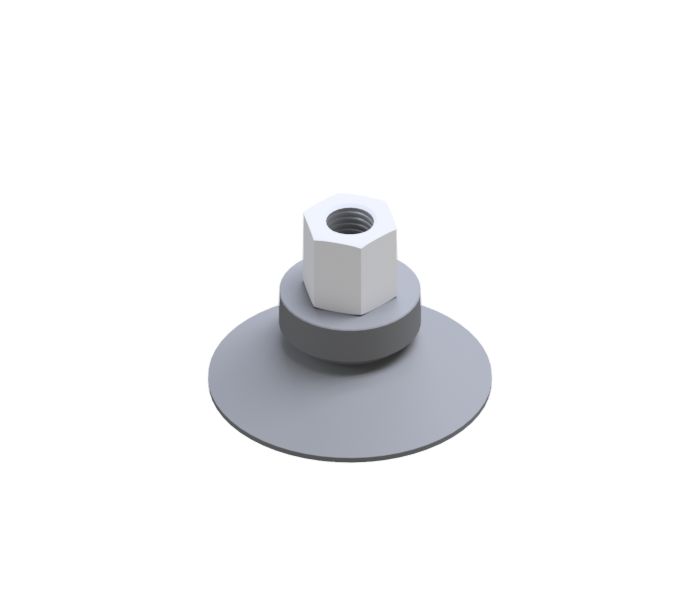

Vacuum Cup 50 mm diameter, rubber material Nitrile. + Metallic part, thread 1/8 female, for vacuum cups VC50, VC60, VF53, VF56, V48 and V52.
Vacuum Cup 50 mm diameter, rubber material Nitrile. + Metallic part, thread 1/8 female, for vacuum cups VC50, VC60, VF53, VF56, V48 and V52.
| Rubber Material | Nitrile |
|---|---|
| Ø Unloaded [mm] | 50 |
| Ø loaded [mm] | 51 |
| Minimum curve radius [mm] | 57,5 |
| Maximum stroke [mm] | 3 |
| Volume [cm³] | 9 |
| Force at -0,4 bar [Kgf] | 6.07 |
| Force at -0,6 bar [Kgf] | 8.37 |
| Force at -0,8 bar [Kgf] | 10.9 |
| Force at -0,9 bar [Kgf] | 11.8 |
| Suitable for | General use, Flat surfaces, Slightly curved surfaces |
| Advantages | Wide range of diameters, Versatility |
| Thread type | Female |
| Thread | G1/8’’ |
| Fitting part material | Steel |
Download datasheet (.pdf)
Download CAD3D file (.stp)
