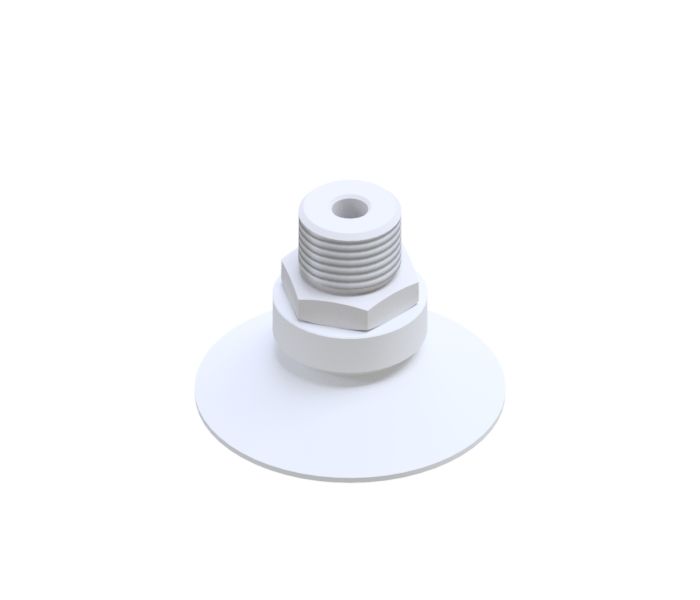

Vacuum Cup 50 mm diameter, rubber material Silicone. + Metallic part thread 3/8 male, for vacuum cups VC50,60,VF56,53, V48 and 52.
Vacuum Cup 50 mm diameter, rubber material Silicone. + Metallic part thread 3/8 male, for vacuum cups VC50,60,VF56,53, V48 and 52.
| Rubber Material | Silicone |
|---|---|
| Ø Unloaded [mm] | 50 |
| Ø loaded [mm] | 51 |
| Minimum curve radius [mm] | 57,5 |
| Maximum stroke [mm] | 3 |
| Volume [cm³] | 9 |
| Force at -0,4 bar [Kgf] | 6.07 |
| Force at -0,6 bar [Kgf] | 8.37 |
| Force at -0,8 bar [Kgf] | 10.9 |
| Force at -0,9 bar [Kgf] | 11.8 |
| Suitable for | General use, Flat surfaces, Slightly curved surfaces |
| Advantages | Wide range of diameters, Versatility |
| Thread type | Male |
| Thread | G3/8’’ |
| Fitting part material | Steel |
Download datasheet (.pdf)
Download CAD3D file (.stp)
