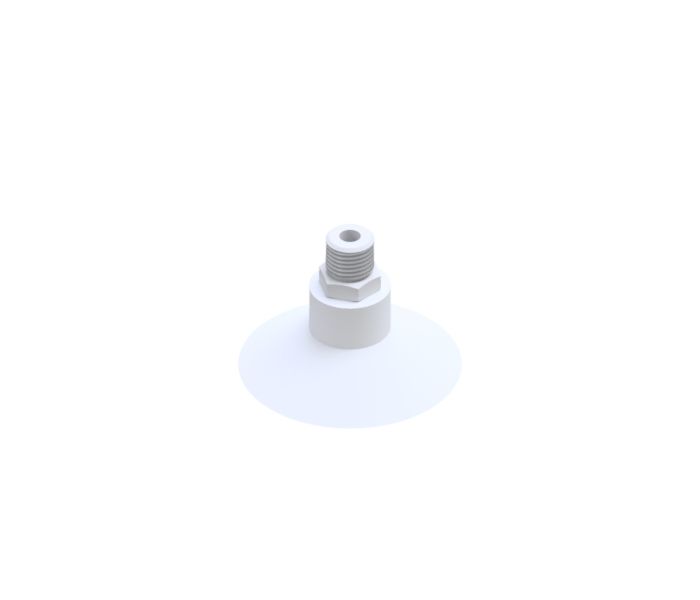

Vacuum Cup 60 mm diameter, rubber material Silicone. + Metallic part thread 1/4 male, for vacuum cups with ref: VC50,60,VF56,53,V48,52 and VSP.
Vacuum Cup 60 mm diameter, rubber material Silicone. + Metallic part thread 1/4 male, for vacuum cups with ref: VC50,60,VF56,53,V48,52 and VSP.
| Rubber Material | Silicone |
|---|---|
| Ø Unloaded [mm] | 60 |
| Ø loaded [mm] | 61.5 |
| Minimum curve radius [mm] | 27,5 |
| Maximum stroke [mm] | 8.5 |
| Volume [cm³] | 19 |
| Force at -0,4 bar [Kgf] | 7.63 |
| Force at -0,6 bar [Kgf] | 10.1 |
| Force at -0,8 bar [Kgf] | 12.1 |
| Force at -0,9 bar [Kgf] | 13.1 |
| Suitable for | General use, Flat surfaces, Slightly curved surfaces |
| Advantages | Wide range of diameters, Versatility |
| Thread type | Male |
| Thread | G1/4’’ |
| Fitting part material | Aluminum |
Download datasheet (.pdf)
Download CAD3D file (.stp)
