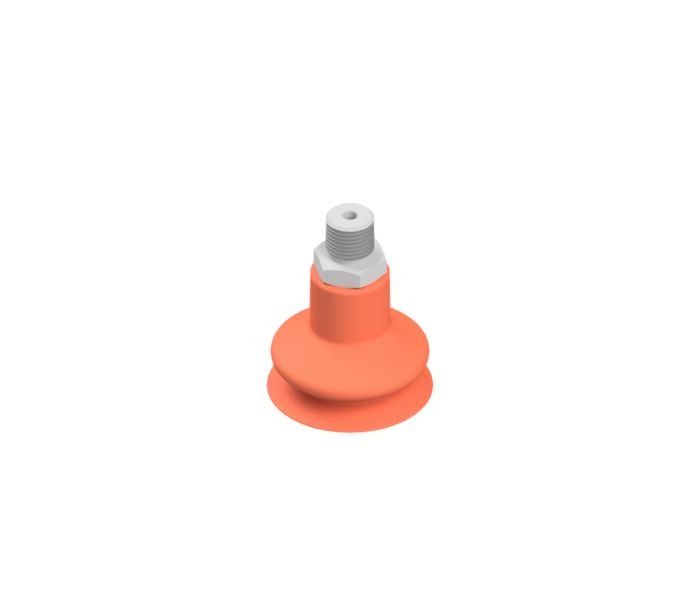

Vacuum Cup 25 mm diameter, rubber material Natural Rubber + Metallic part thread G1/4” male, flow Ø3mm.
Vacuum Cup 25 mm diameter, rubber material Natural Rubber + Metallic part thread G1/4” male, flow Ø3mm.
| Rubber Material | Polyurethane |
|---|---|
| Ø Unloaded [mm] | 34 |
| Ø loaded [mm] | 34,4 |
| Minimum curve radius [mm] | 12,5 |
| Maximum stroke [mm] | 13,5 |
| Volume [cm³] | 55 |
| Number of folds | 1,5 |
| Force at -0,4 bar [Kgf] | 2,9 |
| Force at -0,6 bar [Kgf] | 4,1 |
| Force at -0,8 bar [Kgf] | 4,8 |
| Force at -0,9 bar [Kgf] | 5,2 |
| Suitable for | Flat surfaces, Paper, cardboard, Boxes |
| Advantages | Wear and abrasion durability |
| Thread type | Male |
| Thread | G1/8’’ |
| Fitting part material | Aluminum |
Download datasheet (.pdf)
Download CAD3D file (.stp)
