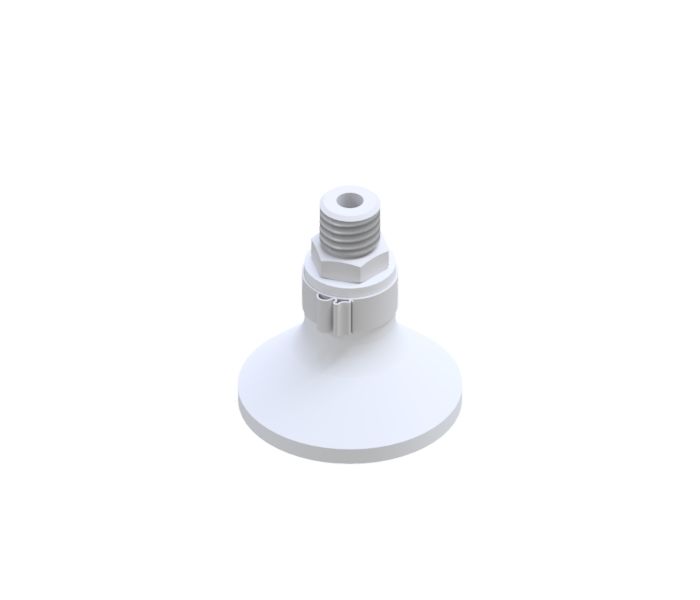

Triple Lip Vacuum Cup, 48 mm diameter, rubber material Silicone. + Metallic Part for vacuum cups with ref: VCØ50,Ø60,VFØ56,Ø53, VPØ48-52 and VSP. + Clamp Ø21mm
Triple Lip Vacuum Cup, 48 mm diameter, rubber material Silicone. + Metallic Part for vacuum cups with ref: VCØ50,Ø60,VFØ56,Ø53, VPØ48-52 and VSP. + Clamp Ø21mm
| Rubber Material | Silicone |
|---|---|
| Ø Unloaded [mm] | 48 |
| Ø loaded [mm] | 49.5 |
| Minimum curve radius [mm] | 35 |
| Maximum stroke [mm] | 3 |
| Volume [cm³] | 9 |
| Number of folds | 0 |
| Force at -0,4 bar [Kgf] | 6.44 |
| Force at -0,6 bar [Kgf] | 9.18 |
| Force at -0,8 bar [Kgf] | 11.4 |
| Force at -0,9 bar [Kgf] | 12.1 |
| Suitable for | Rough surfaces, Wear and abrasion durability |
| Advantages | Triple lip |
| Thread type | Male |
| Thread | G1/4’’ |
| Fitting part material | Aluminum |
