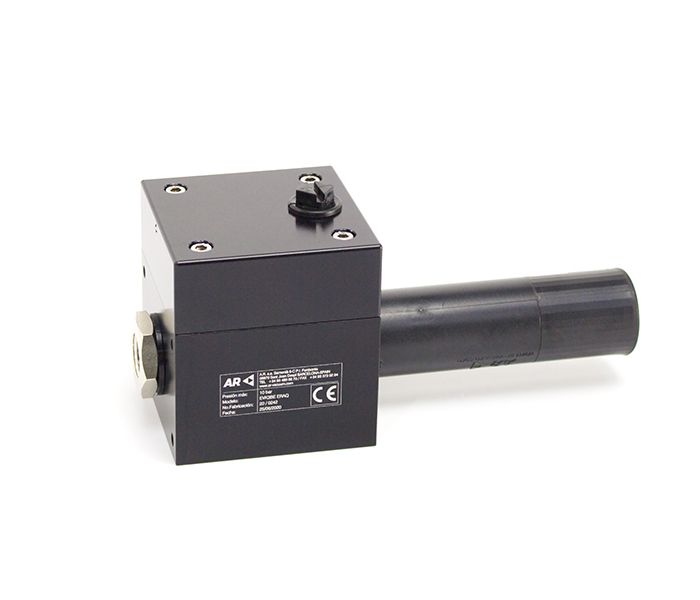

Vacuum Ejector model K-3BE, quick exhaust valve integrated
Vacuum Ejector model K-3BE, quick exhaust valve integrated
| Weight [g] | 1325 |
|---|---|
| Max vacuum degree [mbar] | -920 |
| Max suction air flow [Nl/min] | 270 |
| Air flow consumption [Nl/min] | 270 |
| Supply pressure [bar] | 4 ... 6 |
| Working noise level [dB] | 75 |
| Supply port | G3/8" |
| Vacuum port | G3/4" |
| Materials | Al | Brass | HDPE | PP |
| Working temperature [ºC] | -20 ... 70 |
| Evacuation time [s] of a test volume to -100 Kpa | 0,4 |
| Evacuation time [s] of a test volume to -200 Kpa | 1 |
| Evacuation time [s] of a test volume to -300 Kpa | 1,7 |
| Evacuation time [s] of a test volume to -400 Kpa | 2,5 |
| Evacuation time [s] of a test volume to -500 Kpa | 3,6 |
| Evacuation time [s] of a test volume to -600 Kpa | 5,1 |
| Evacuation time [s] of a test volume to -700 Kpa | 7,5 |
| Evacuation time [s] of a test volume to -800 Kpa | 12,7 |
| Evacuation time [s] of a test volume to -900 Kpa | 48,5 |
| Test volume [L] | 25 |
| Type | STD |
| Quick exhaust | Direct |
