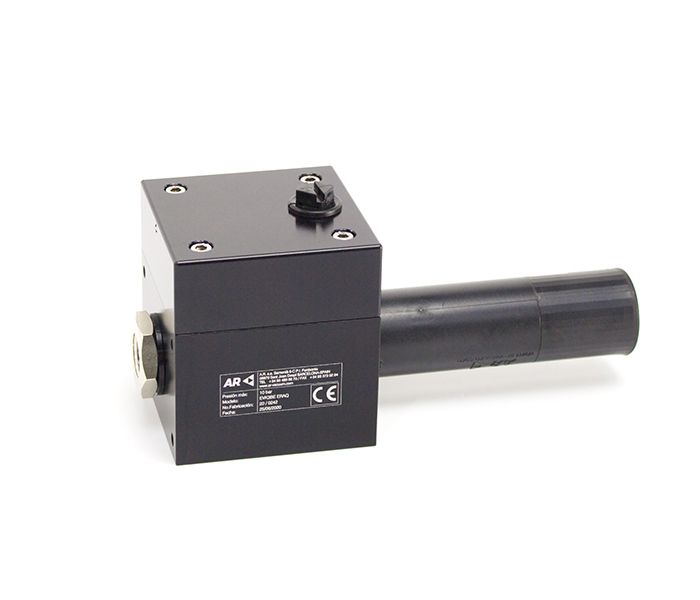

Vacuum Ejector model K-3BE High-flow, with quick exhaust valve integrated
Vacuum Ejector model K-3BE High-flow, with quick exhaust valve integrated
| Weight [g] | 1325 |
|---|---|
| Max vacuum degree [mbar] | -720 |
| Max suction air flow [Nl/min] | 380 |
| Air flow consumption [Nl/min] | 270 |
| Supply pressure [bar] | 4 ... 6 |
| Working noise level [dB] | 80 |
| Supply port | G3/8" |
| Vacuum port | G3/4" |
| Materials | Al | Brass | HDPE | PP |
| Working temperature [ºC] | -20 ... 70 |
| Evacuation time [s] of a test volume to -100 Kpa | 0,3 |
| Evacuation time [s] of a test volume to -200 Kpa | 0,6 |
| Evacuation time [s] of a test volume to -300 Kpa | 1,1 |
| Evacuation time [s] of a test volume to -400 Kpa | 1,6 |
| Evacuation time [s] of a test volume to -500 Kpa | 2,4 |
| Evacuation time [s] of a test volume to -600 Kpa | 4 |
| Evacuation time [s] of a test volume to -700 Kpa | 7,8 |
| Test volume [L] | 25 |
| Type | AQ |
| Quick exhaust | Direct |
