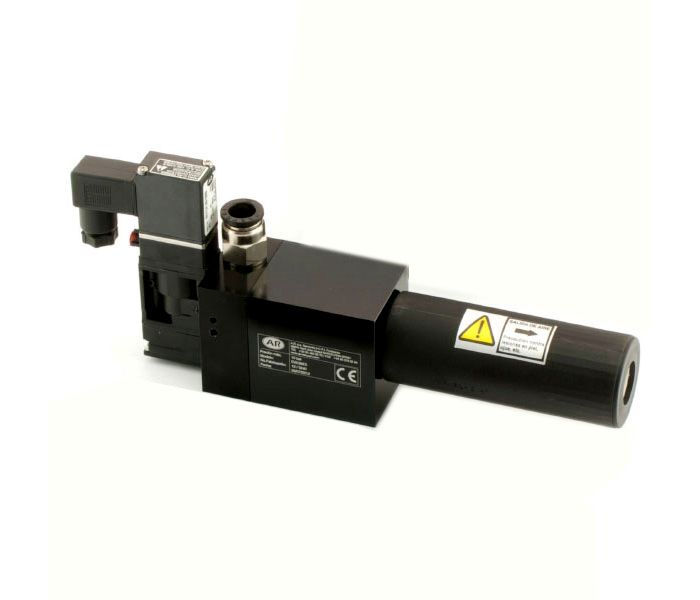

Vacuum ejector KEBES very high flow, -450 mbar, with supply solenoid valve integrated at 24 V AC
Vacuum ejector KEBES very high flow, -450 mbar, with supply solenoid valve integrated at 24 V AC
| Weight [g] | 475 |
|---|---|
| Max vacuum degree [mbar] | -450 |
| Max suction air flow [Nl/min] | 600 |
| Air flow consumption [Nl/min] | 280 |
| Supply pressure [bar] | >5 |
| Working noise level [dB] | 80 |
| Supply port | T10x8 |
| Vacuum port | G3/4" |
| Materials | Al | Brass | HDPE | PP |
| Working temperature [ºC] | -20 ... 71 |
| Solenoid power cons. [W] | 2 |
| Evacuation time [s] of a test volume to -100 Kpa | 0,1 |
| Evacuation time [s] of a test volume to -200 Kpa | 0,4 |
| Evacuation time [s] of a test volume to -300 Kpa | 0,8 |
| Evacuation time [s] of a test volume to -400 Kpa | 1,8 |
| Test volume [L] | 25 |
| Type | AQ+ |
| Supply solenoid valve voltage | 24 V AC |
