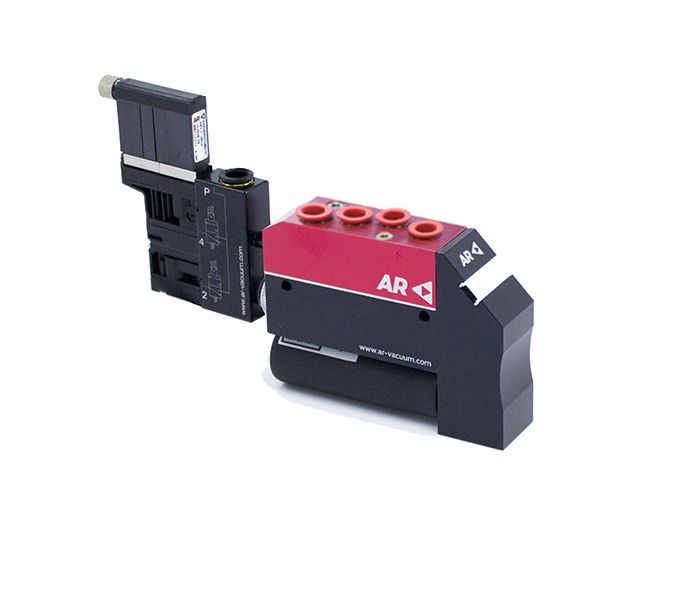

Assembly body, width 26 mm. , for NK2 ejectors. Includes 4 T8 outputs + 1 T6 output + Vacuum cartridge, maximum suction flow 188 Nl/min. + Complete supply solenoid and blowing valve kit with Ø8 output supply tube, M8 connector.
Assembly body, width 26 mm. , for NK2 ejectors. Includes 4 T8 outputs + 1 T6 output + Vacuum cartridge, maximum suction flow 188 Nl/min. + Complete supply solenoid and blowing valve kit with Ø8 output supply tube, M8 connector.
| Weight [g] | 431 |
|---|---|
| Max vacuum degree [mbar] | -920 |
| Max suction air flow [Nl/min] | 180 |
| Air flow consumption [Nl/min] | 160 |
| Supply pressure [bar] | 4 ... 6 |
| Working noise level [dB] | 80 |
| Supply port | T8 |
| Materials | Al|Brass|ST.Steel|NBR|PP|PE |
| Working temperature [ºC] | -20 ... 70 |
| Vacuum port V1 | G1/2'' |
| Vacuum port V2 | G1/8" |
| Vacuum port V3 | T8 |
| Evacuation time [s] of a test volume to -100 Kpa | 0,5 |
| Evacuation time [s] of a test volume to -200 Kpa | 1,1 |
| Evacuation time [s] of a test volume to -300 Kpa | 2,1 |
| Evacuation time [s] of a test volume to -400 Kpa | 3,2 |
| Evacuation time [s] of a test volume to -500 Kpa | 4,8 |
| Evacuation time [s] of a test volume to -600 Kpa | 7,7 |
| Evacuation time [s] of a test volume to -700 Kpa | 12 |
| Evacuation time [s] of a test volume to -800 Kpa | 21 |
| Evacuation time [s] of a test volume to -900 Kpa | 47,2 |
| Test volume [L] | 25 |
