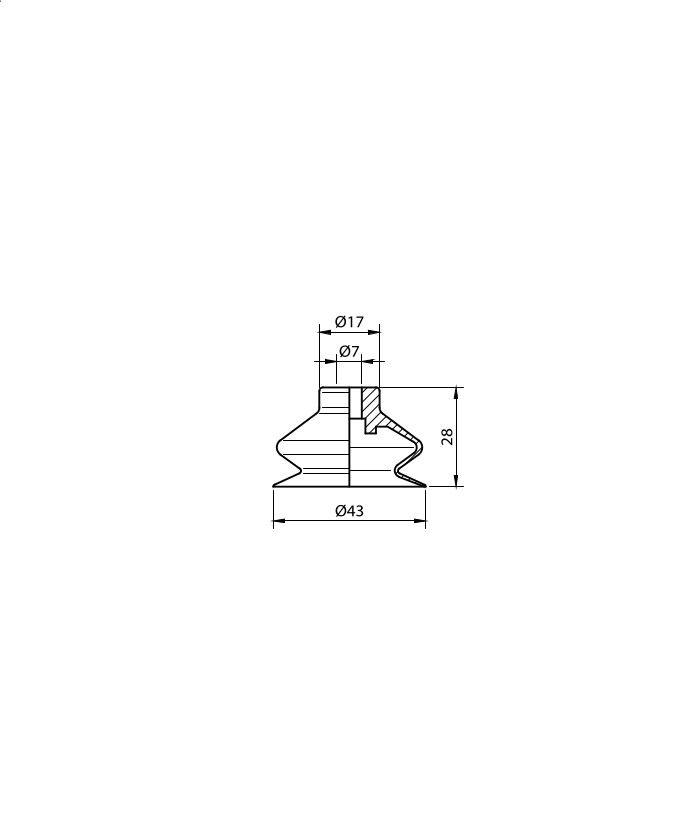

Bellows vacuum cup Ø 44 mm, material Poliurethane.
Bellows vacuum cup Ø 44 mm, material Poliurethane.
| Rubber Material | Polyurethane |
|---|---|
| Ø Unloaded [mm] | 43 |
| Ø loaded [mm] | 44,5 |
| Minimum curve radius [mm] | 22,5 |
| Maximum stroke [mm] | 15,1 |
| Volume [cm³] | 110 |
| Number of folds | 2,5 |
| Force at -0,4 bar [Kgf] | 4,04 |
| Force at -0,6 bar [Kgf] | 4,93 |
| Force at -0,8 bar [Kgf] | 6,5 |
| Force at -0,9 bar [Kgf] | 7,2 |
| Suitable for | Paper, cardboard, Boxes |
| Advantages | Wear and abrasion durability |
Download datasheet (.pdf)
