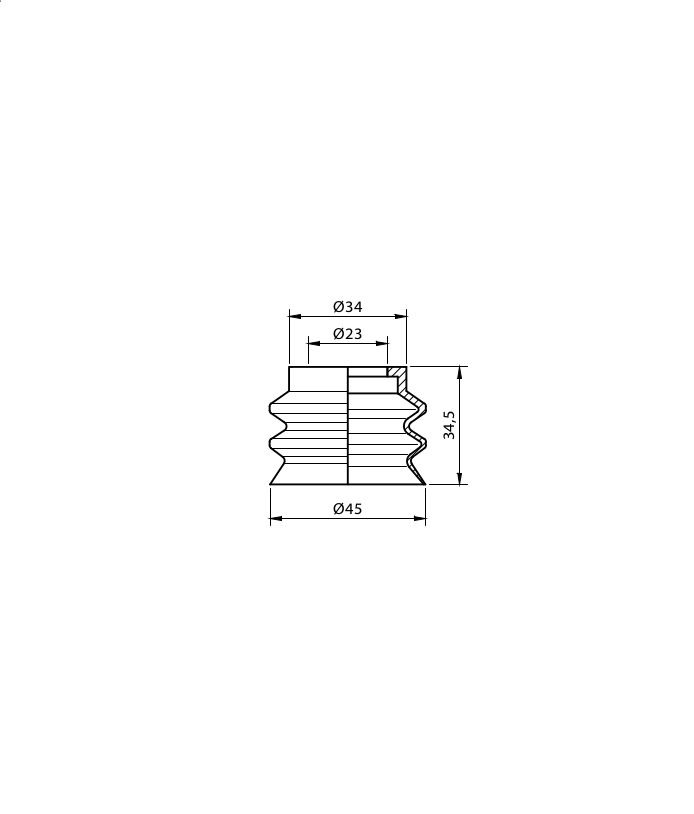

Bellows vacuum cup 45 mm diameter, in black natural rubber material.
Bellows vacuum cup 45 mm diameter, in black natural rubber material.
| Rubber Material | Black natural rubber |
|---|---|
| Ø Unloaded [mm] | 45 |
| Ø loaded [mm] | 47,5 |
| Minimum curve radius [mm] | 12,5 |
| Maximum stroke [mm] | 19 |
| Volume [cm³] | 34 |
| Number of folds | 2,5 |
| Force at -0,4 bar [Kgf] | 4,39 |
| Force at -0,6 bar [Kgf] | 5,75 |
| Force at -0,8 bar [Kgf] | 7,48 |
| Force at -0,9 bar [Kgf] | 8,12 |
| Suitable for | Flat surfaces, Curved surfaces |
| Advantages | Wide range of diameters, Versatility, Height compensation |
Download datasheet
