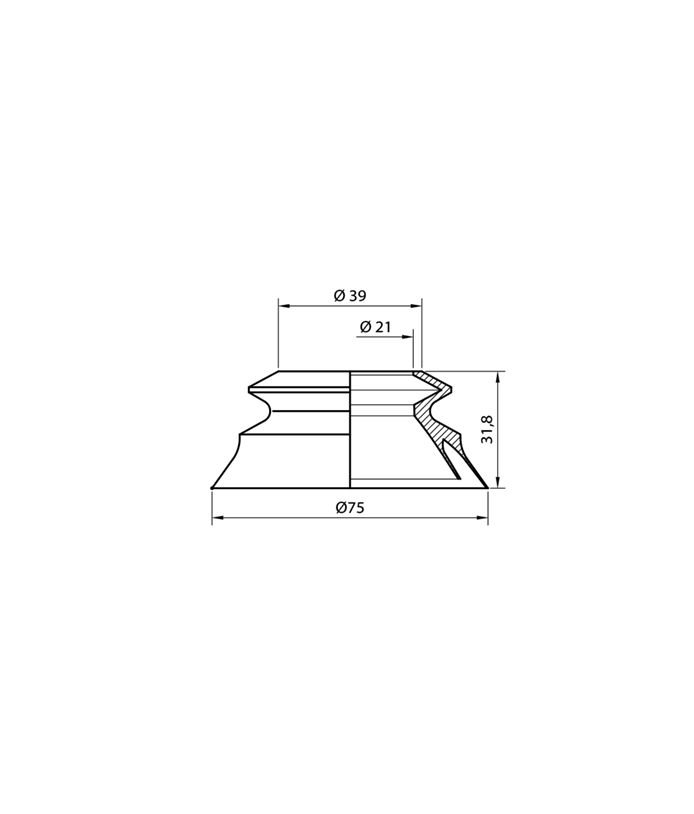

Bellow Vacuum Cup, 75 mm diameter, in silicone 30 Shores
| Rubber Material | Silicone |
|---|---|
| Ø Unloaded [mm] | 75 |
| Ø loaded [mm] | 80 |
| Minimum curve radius [mm] | 17,5 |
| Maximum stroke [mm] | 14,6 |
| Volume [cm³] | 63 |
| Weight [g] | 95 |
| Number of folds | 1 |
| Force at -0,4 bar [Kgf] | 5,84 |
| Force at -0,6 bar [Kgf] | 7,19 |
| Force at -0,8 bar [Kgf] | 8,82 |
| Force at -0,9 bar [Kgf] | 9,26 |
| Suitable for | Flat surfaces, Spherical surfaces, Curved surfaces, Horizontal handling, Food |
| Advantages | Lifting stroke, Great adaptability |
Download datasheet (.pdf)
