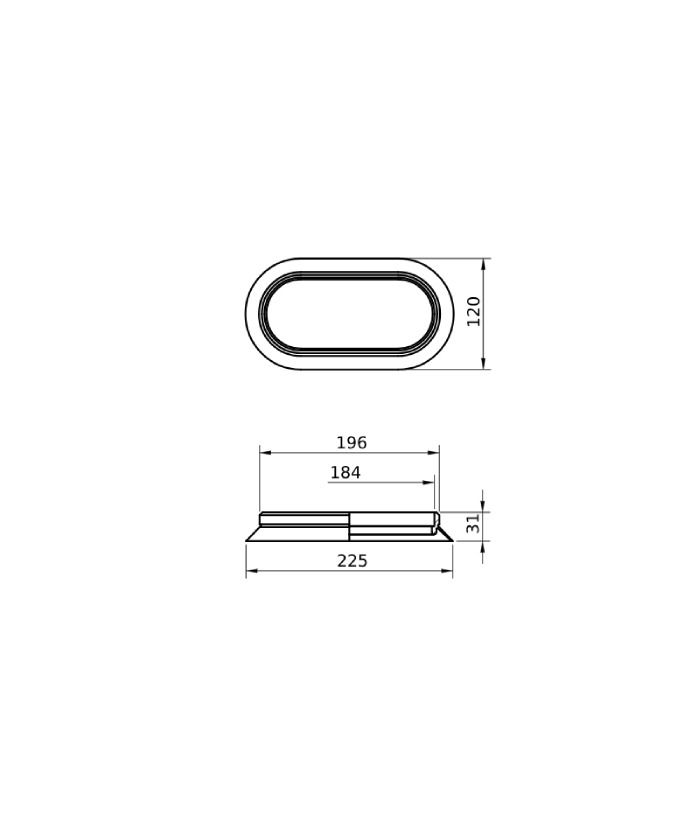

Rubber Spare part for vacuum cups VGD 225x120CN and VGD-S 225x120CN
Rubber Spare part for vacuum cups VGD 225x120CN and VGD-S 225x120CN
| Rubber Material | Natural rubber |
|---|---|
| Unloaded size [mm] | 225x120 |
| Ø loaded [mm] | 230x147 |
| Minimum curve radius [mm] | 300 |
| Maximum stroke [mm] | 6 |
| Volume [cm³] | 1440 |
| Weight [g] | 1600 |
| Force at -0,4 bar [Kgf] | 77 |
| Force at -0,6 bar [Kgf] | 101 |
| Force at -0,8 bar [Kgf] | 118 |
| Force at -0,9 bar [Kgf] | 133 |
| Suitable for | Hard grip, Bag handling, High load, Sacks handling |
| Advantages | Large internal volume |
Download datasheet (.pdf)
