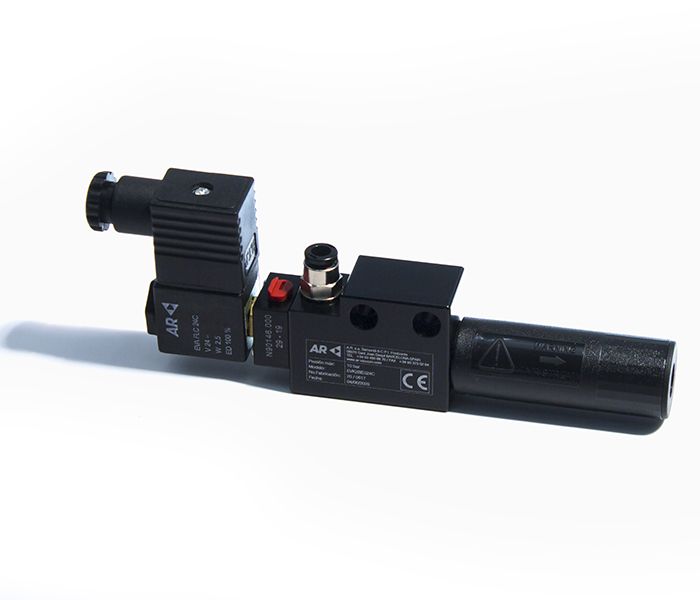

Vacuum Ejector model K-2BE with supply solenoid valve integrated at 24 V CC
Vacuum Ejector model K-2BE with supply solenoid valve integrated at 24 V CC
| Weight [g] | 230 |
|---|---|
| Max vacuum degree [mbar] | -920 |
| Max suction air flow [Nl/min] | 65 |
| Air flow consumption [Nl/min] | 55 |
| Supply pressure [bar] | 4 ... 6 |
| Working noise level [dB] | 75 |
| Supply port | T6x4 |
| Vacuum port | G3/8" |
| Materials | Al | Brass | HDPE | PP |
| Working temperature [ºC] | -20 ... 70 |
| Evacuation time [s] of a test volume to -100 Kpa | 1,6 |
| Evacuation time [s] of a test volume to -200 Kpa | 3,6 |
| Evacuation time [s] of a test volume to -300 Kpa | 6,8 |
| Evacuation time [s] of a test volume to -400 Kpa | 9,7 |
| Evacuation time [s] of a test volume to -500 Kpa | 14,7 |
| Evacuation time [s] of a test volume to -600 Kpa | 21,9 |
| Evacuation time [s] of a test volume to -700 Kpa | 32,7 |
| Evacuation time [s] of a test volume to -800 Kpa | 63,8 |
| Evacuation time [s] of a test volume to -900 Kpa | 156 |
| Test volume [L] | 25 |
| Type | STD |
| Supply solenoid valve voltage | 24V DC |
Download datasheet (.pdf)
Download CAD
