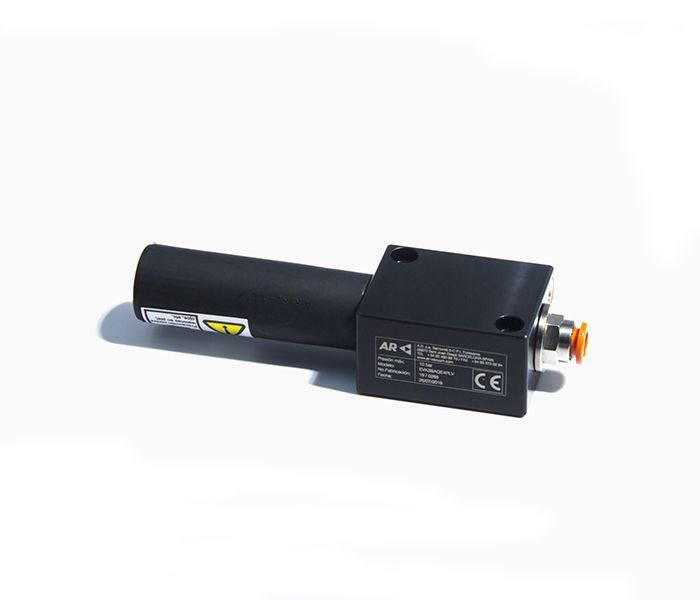

Vacuum generator, high flow, special body in POM, with external blow port.
Vacuum generator, high flow, special body in POM, with external blow port.
| Max vacuum degree [mbar] | -720 |
|---|---|
| Max suction air flow [Nl/min] | 202 |
| Air flow consumption [Nl/min] | 120 |
| Supply pressure [bar] | 4 ... 6 |
| Working noise level [dB] | 80 |
| Supply port | T8x6 |
| Vacuum port | G1/2" |
| Materials | Al |POM | Brass | HDPE | PP |
| Working temperature [ºC] | -20 ... 70 |
| Evacuation time [s] of a test volume to -100 Kpa | 0,5 |
| Evacuation time [s] of a test volume to -200 Kpa | 1,1 |
| Evacuation time [s] of a test volume to -300 Kpa | 2 |
| Evacuation time [s] of a test volume to -400 Kpa | 3,1 |
| Evacuation time [s] of a test volume to -500 Kpa | 4,7 |
| Evacuation time [s] of a test volume to -600 Kpa | 7,8 |
| Evacuation time [s] of a test volume to -700 Kpa | 18 |
| Test volume [L] | 25 |
| Type | AQ |
