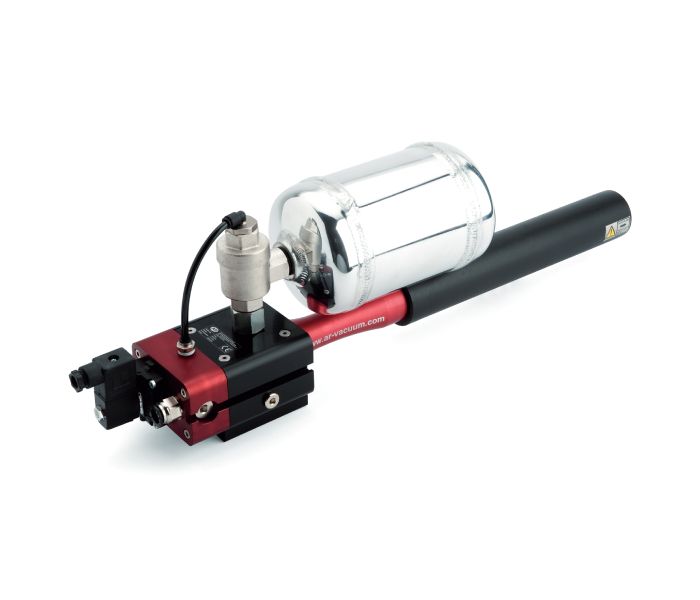

KZ vacuum ejector, degree 40, anodized nozzle with 1,5 L outward exhaust system and supply solenoid valve 220V AC
KZ vacuum ejector, degree 40, anodized nozzle with 1,5 L outward exhaust system and supply solenoid valve 220V AC
| Max vacuum degree [mbar] | -400 |
|---|---|
| Max suction air flow [Nl/min] | 1050 |
| Air flow consumption [Nl/min] | 290 |
| Supply pressure [bar] | >5 |
| Working noise level [dB] | 82 |
| Supply port | T12X10 |
| Vacuum port | G 2" Female |
| Materials | DELRIN | Al | others |
| Working temperature [ºC] | -20 ... 70 |
| Solenoid power cons. [W] | 4 |
| Evacuation time [s] of a test volume to -100 Kpa | 0,4 |
| Evacuation time [s] of a test volume to -200 Kpa | 0,9 |
| Evacuation time [s] of a test volume to -300 Kpa | 1,9 |
| Evacuation time [s] of a test volume to -400 Kpa | 9 |
| Test volume [L] | 100 |
| Supply solenoid valve voltage | 220V AC |
| Quick exhaust | Free |
Download datasheet (.pdf)
Download CAD
