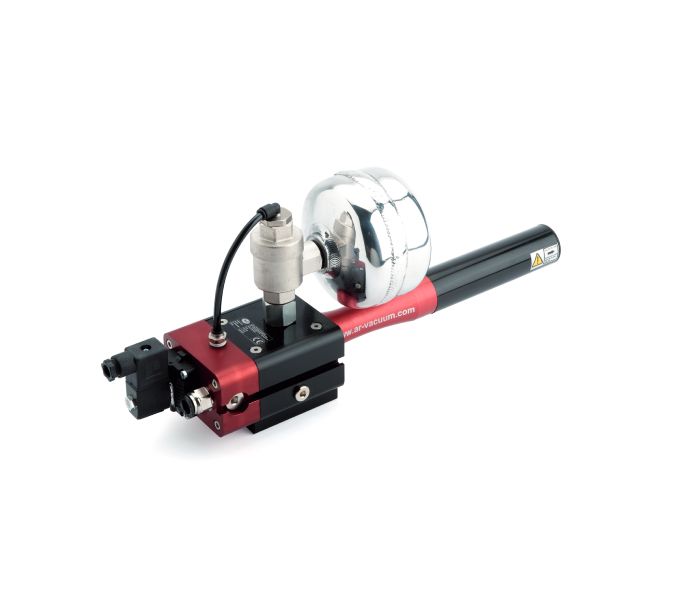

KZ vacuum ejector, degree 80, anodized nozzle with 0,5 L inward exhaust system and supply solenoid valve 24V DC
KZ vacuum ejector, degree 80, anodized nozzle with 0,5 L inward exhaust system and supply solenoid valve 24V DC
| Max vacuum degree [mbar] | -800 |
|---|---|
| Max suction air flow [Nl/min] | 460 |
| Air flow consumption [Nl/min] | 290 |
| Supply pressure [bar] | >5 |
| Working noise level [dB] | 82 |
| Supply port | T12X10 |
| Vacuum port | G 1 1/2" Female |
| Materials | DELRIN | Al | others |
| Working temperature [ºC] | -20 ... 70 |
| Solenoid power cons. [W] | 5,5 |
| Evacuation time [s] of a test volume to -100 Kpa | 0,9 |
| Evacuation time [s] of a test volume to -200 Kpa | 2 |
| Evacuation time [s] of a test volume to -300 Kpa | 3,2 |
| Evacuation time [s] of a test volume to -400 Kpa | 4,9 |
| Evacuation time [s] of a test volume to -500 Kpa | 6,9 |
| Evacuation time [s] of a test volume to -600 Kpa | 9,6 |
| Evacuation time [s] of a test volume to -700 Kpa | 15 |
| Evacuation time [s] of a test volume to -800 Kpa | 49 |
| Test volume [L] | 100 |
| Supply solenoid valve voltage | 24V DC |
| Quick exhaust | Direct |
