Vacuum ejectors

Used in applications where a low or moderate vacuum flow is required. A good example are handling systems with decentralised generation, in which each ejector feeds a group of suction cups.

  • K vacuum ejectors
    Range of vacuum ejectors for general use. Options: Feeding solenoid valve, fast ejection. Suction air flow range: 55 - 240 Nl / min Maximum vacuum degree: -720 / -920 mbar
  • FAB vacuum ejectors

    Multistage ejector with vacuum electronic control

  • NKX vacuum ejectors
    Vacuum ejector for direct mounting to suction cup. Interchangeable generator cartridge. Upper connection for spring compensator. Suction air flow range: 20 - 180 Nl / min Maximum vacuum degree: -920 mbar
  • FK vacuum ejectors
    Small vacuum ejectors for direct suction mounting. Compressed air inlet by instantaneous fitting. Threaded termination with various mounting options: Fixing with two lock nuts / Flat or L-shaped mounting plate / Top connection for spring compensator Suction air flow range: 10 - 20 Nl / min Maximum vacuum level: -920 mbar
  • NK1 vacuum ejectors
    Modular interchangeable cartridge ejectors. Auction air flow range: 30 - 75 Nl / min Maximum vacuum level: -920 mbar
  • NK2 vacuum ejectors
    Modular interchangeable cartridge ejectors. Auction air flow range: 120 - 230 Nl / min Maximum vacuum level: -920 mbar

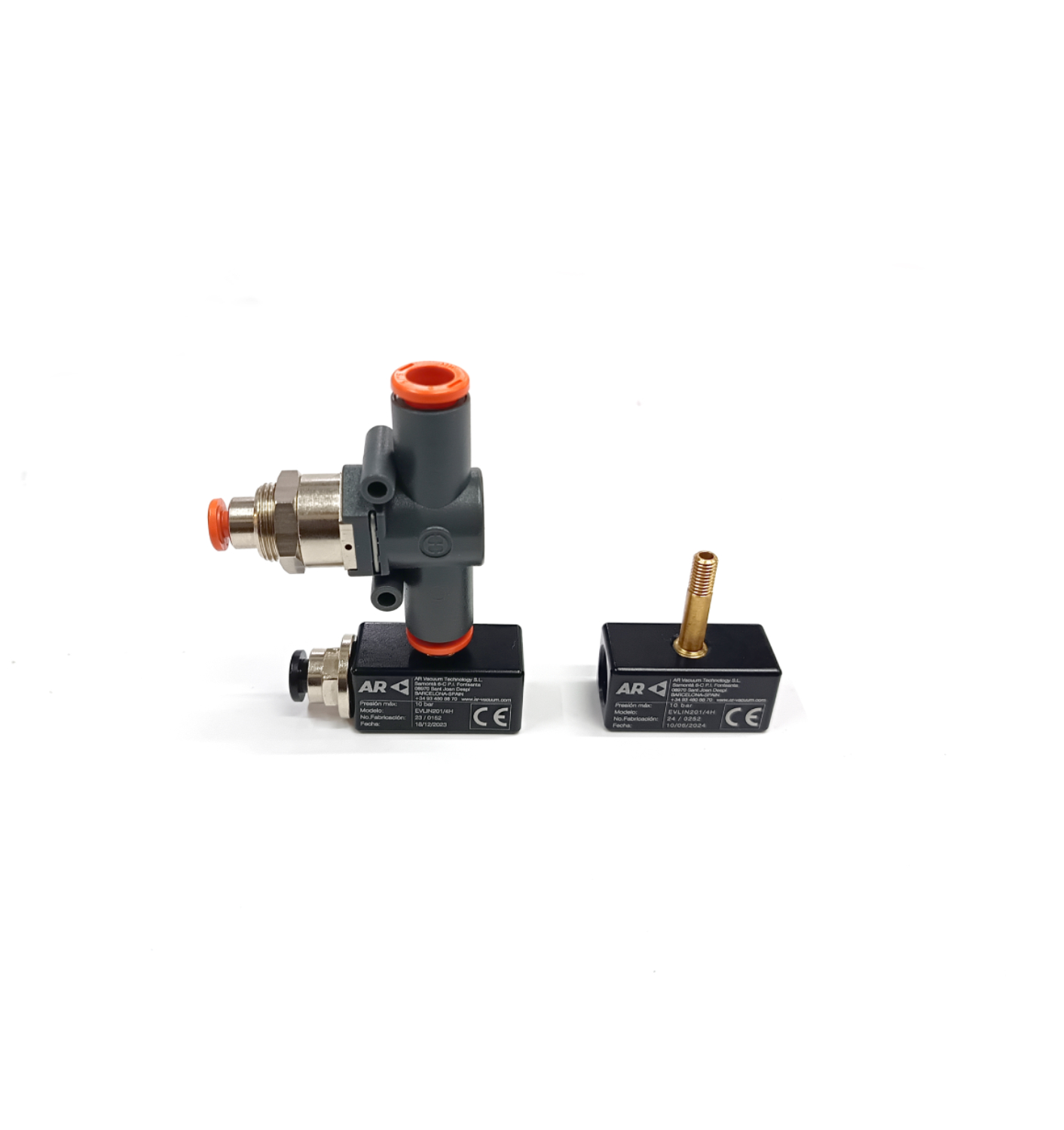

  • Inline vacuum ejectors

    Vacuum ejectors for in-line use.

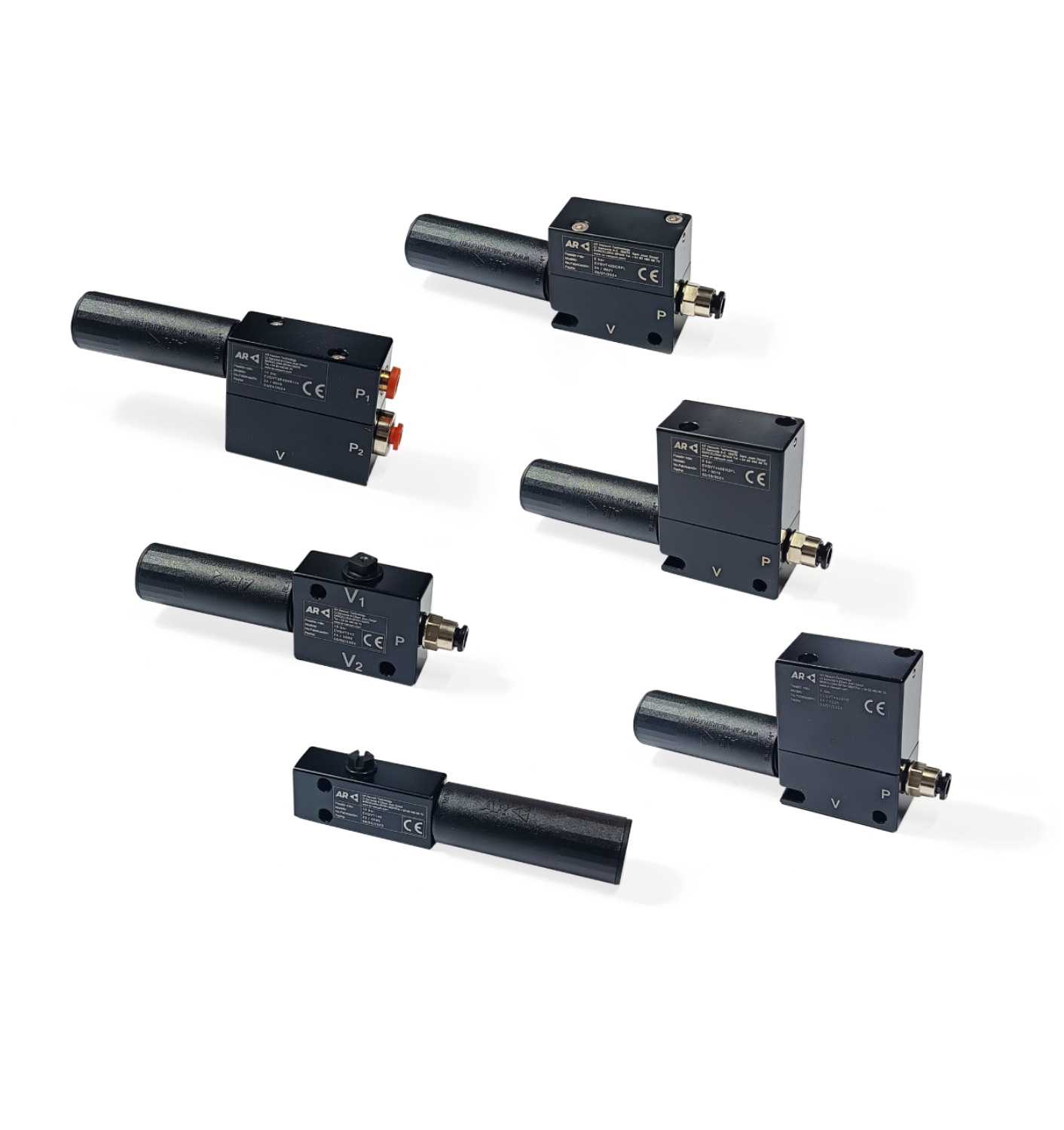

  • GVT vacuum ejectors

    Vacuum ejectors with suction flow rate 50 Nl/min

  • CK vacuum cartridges
    Vacuum cartridges insertable in NK, NKX bodies or in custom applications. Suction air flow range: 30 - 230 Nl / min
  • Energy Saving

    The NK Safety and Energy Saving System (SSAE) is a component designed to operate with the NK ejector and its operating management elements (the supply and blow solenoid valve, the vacuum check valve and the electronic digital vacuum switch), that provides energy savings and a level of security.

    Energy savings can reach up to 80% and the security system manages to maintain the vacuum level for a period, which allows us to act and take due precautions when the alarm signal is given.
  • KZ vacuum ejectors
    Very high suction flow vacuum ejectors. Ability to work in very dirty environments without the need to mount a suction filter. Available options: supply solenoid valve, ejection blower, extra soundproofing and chemical nickel nozzle. Suction air flow range: 460 - 1950 Nl / min Maximum vacuum degree : -200 / -400 / -600 / -800 mbar versions
  • KAC vacuum ejectors
    Very high suction flow vacuum ejectors. Ability to work in very dirty environments without the need to mount a suction filter. Suction air flow range: 850 - 3100 Nl / min Maximum vacuum level: versions -200 / -400 / -600 / -800 mba
